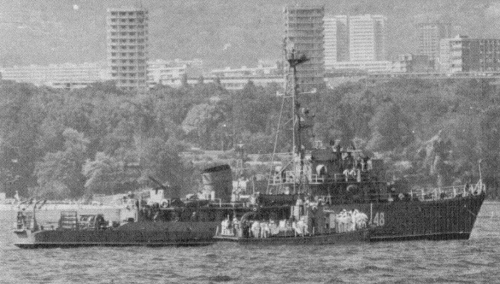

No17 1963
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| (ex-T-49), 1982- Н. И. Ваптсаров [N. Y. Vaptsarov] | 17, 1961- 21, 1967- 48, 1980- 412 | 532 Yd, Kerch', USSR | 3.3.1948 | 30.9.1949 | 25.3.1950 // 11.8.1951 | TS 1982, stricken 1993 | |
| (ex-T-50) | 18, 1961- 22, 1967- 49, 1980- 421 | 532 Yd, Kerch', USSR | 30.6.1948 | 29.11.1949 | 30.4.1950 // 11.8.1951 | target 1982 |
|
Displacement standard, t |
500 |
|
Displacement normal, t |
569 |
|
Length, m |
58.0 |
|
Breadth, m |
8.52 |
|
Draught, m |
2.25 |
|
No of shafts |
2 |
|
Machinery |
2 9D diesels |
|
Power, h. p. |
2200 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3200(10) |
|
Armament |
2 x 2 - 37/70 V-11/V-11M, 4 x 2 - 12.7/79, 2 DCT, 2 DCR (22), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), MT-1 or MT-1P mechanical, TEM-52 magnetic, 2 BAT-2 acoustic minesweeping gear |
|
Electronic equipment |
Rif or Giuys-1M, Rym-K or Neptun radars, Tamir-10 sonar |
|
Complement |
65 |
Project history: Former Soviet Project 254 seagoing minesweepers.
Modernizations: None.
Naval service: No significant events.
