No511 1985
|
Names |
511-513 515 521-523 531-533 |
|
Builders |
More, Feodosiya, USSR: 511-513, 515, 521-523, 531-533 |
|
Completed |
1980-1981: 511-513, 515, 521-523, 531-533 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2002: 515 2005: 531 2010: 513 2012: 511 in service (2019): 512, 521-523, 532, 533 |
|
Displacement standard, t |
37 |
|
Displacement full, t |
40 |
|
Length, m |
23.8 |
|
Breadth, m |
5.15 |
|
Draught, m |
1.00 |
|
No of shafts |
2 |
|
Machinery |
2 M-401BT diesels |
|
Power, h. p. |
2000 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
450(13) |
|
Armament |
2 x 2 - 12.7/79 |
|
Sensors |
Lotsiya or Liman radar |
|
Complement |
9 |
Project history: Soviet project 1400ME boats, built specially for Bulgaria.
Modernizations: 2000s, No521, No533: - 1 x 2 - 12.7/79
Naval service: No significant events.

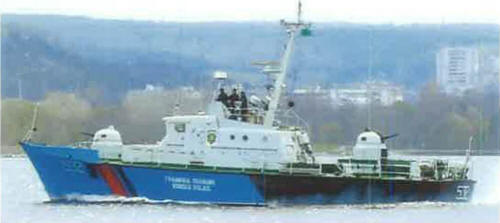

No532 2008
