Bung Tomo 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Nakhoda Ragam | 28 | 1056 | BAE Systems, Scotstoun, UK | 16.3.1999 | 13.1.2001 | 12/2003 // --- | commissioned by Indonesia 2014 (John Lie) |
| Bengahara Sakam | 29 | 1055 | BAE Systems, Scotstoun, UK | 15.11.1999 | 23.6.2001 | 5/2004 // --- | commissioned by Indonesia 2014 (Usman Harun) |
| Jerambak | 30 | 1057 | BAE Systems, Scotstoun, UK | 5.4.2000 | 22.6.2002 | 12/2004 // --- | commissioned by Indonesia 2014 (Bung Tomo) |
|
Displacement standard, t |
1500 |
|
Displacement full, t |
2000 |
|
Length, m |
89.9 pp 95.0 oa |
|
Breadth, m |
12.7 |
|
Draught, m |
3.60 |
|
No of shafts |
2 |
|
Machinery |
4 MAN-B&W 2RK270 diesels |
|
Power, h. p. |
41070 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
5000(12) |
|
Armament |
2 x 4 MM40 Exocet SSM (8 MM40), 1 x 16 SeaWolf GWS.26 SAM (VLS, 16 SeaWolf), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 30/75 DS-30B, 2 x 3 - 324 Mk 32 TT, helicopter deck |
|
Electronic equipment |
AWS-9, 2x type 1802SW, type 1007, Scout radars, Radamec 2500 e/o director, TMS4130C1 sonar, Cutlass 242, Scorpion, DS300 ECM suites, 2x Super Barricade decoy RL, Nautis IIF CCS |
|
Complement |
79 |
Project history: F2000 frigates were built for Brunei but refused them as too difficult to maintenance before commission. In 2014 they were purchased by Indonesia, Sea Wolf SAM was removed before transfer.

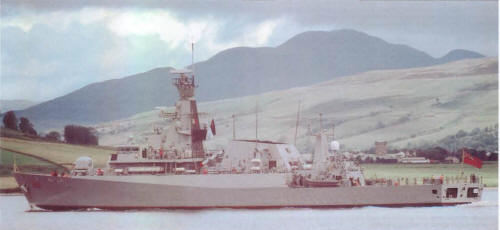

Nakhoda Ragam 2002
Many thanks to Wolfgang Stöhr for additional information on this page.
