Darussalam 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Darussalam | 06 | Lürssen, Lemwerder, Germany | 3.2010 | 14.6.2011 | in service (2020) | ||
| Darulehsan | 07 | Lürssen, Lemwerder, Germany | 9.2010 | 14.6.2011 | in service (2020) | ||
| Darulaman | 08 | Lürssen, Lemwerder, Germany | 6.1.2011 | 12.12.2011 | in service (2020) | ||
| Daruttaqwa | 09 | Lürssen, Lemwerder, Germany | 24.8.2013 | 9.5.2014 | in service (2020) |
|
Displacement standard, t |
1480 |
|
Displacement full, t |
1625 |
|
Length, m |
75.0 pp 80.0 oa |
|
Breadth, m |
13.0 |
|
Draught, m |
3.30 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V1163 TB93 diesels |
|
Power, h. p. |
11560 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
7500(12) |
|
Armament |
06-08: 2 x 2 MM40 Exocet SSM (8 MM40 Block III), 1 x 1 - 57/70 SAK-57 Mk 3, 2 x 1 - 20/90 GAM-B01, helicopter deck 09: 2 x 2 MM40 Exocet SSM (8 MM40 Block III), 1 x 1 - 27/63 MLG-27, 2 x 1 - 20/90 GAM-B01, helicopter deck |
|
Electronic equipment |
Scanter 4100, 2x Furuno, Sting EO Mk 2 radars, MEOS II e/o system, ES-3601 ECM suite, 2x SKWS DL-6 decoy RL |
|
Complement |
58 + 50 passengers |
Project history: Lürssen OPV80 design. Ordered to replace three F2000 frigates not accepted by Brunei's government. Have a ramp for fast inspection launch aft under the helicopter deck.
Modernizations: None.
Naval service: No significant events.

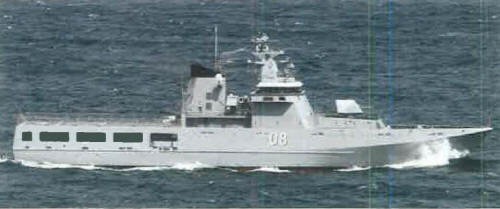

Darulaman 2013
