Waspada 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Waspada | P02 | Vosper Thornycroft, Singapore | 2.8.1977 | 7/1978 | to Indonesia 4.2011 (Salawaku) | ||
| Pejuang | P03 | Vosper Thornycroft, Singapore | 15.3.1978 | 1979 | to Indonesia 4.2011 (Badau) | ||
| Seteria | P04 | Vosper Thornycroft, Singapore | 22.6.1978 | 1979 | stricken late 2011 |
|
Displacement standard, t |
150 |
|
Displacement full, t |
200 |
|
Length, m |
33.5 pp 36.9 oa |
|
Breadth, m |
7.16 |
|
Draught, m |
1.80 |
|
No of shafts |
2 |
|
Machinery |
2 MTU MD20V538TB91 diesels |
|
Power, h. p. |
9000 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil 16 |
|
Endurance, nm(kts) |
1200(14) |
|
Armament |
2 x 1 MM38 Exocet SSM (2 MM38), 1 x 2 - 30/75 GCM-B01, 2 x 1 - 7.6/90 |
|
Electronic equipment |
Decca 1229 radar, Sea Archer e/o director, RDL ECM suite |
|
Complement |
24 |
Project history: Welded steel hull and aluminium superstructure. Waspada differed from other two craft by having an enclosed bridge and training facilities.
Modernizations: 1998-1999, all: - Decca 1229 radar, Sea Archer e/o director, RDL ECM suite; + type 1007 radar, Radamec 2500 e/o system, RDL-2 ECM suite.
Naval service: No significant events.

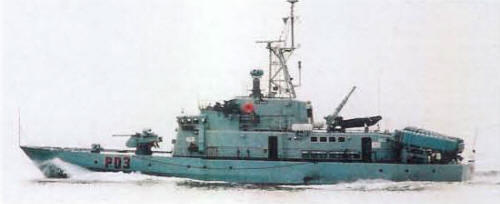

Pejuang 2000
