Ijhtihad 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Ijhtihad | 17 | Lürssen, Vegesack, Germany | 2009 | 7/2009 | in service (2020) | ||
| Berkat | 18 | Lürssen, Vegesack, Germany | 2009 | 11/2009 | in service (2020) | ||
| Syafaat | 19 | Lürssen, Vegesack, Germany | 2010 | 2/2010 | in service (2020) | ||
| Afiat | 20 | Lürssen, Vegesack, Germany | 2010 | 1.5.2010 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
265 |
|
Length, m |
41.3 |
|
Breadth, m |
7.70 |
|
Draught, m |
2.60 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V4000 M93L diesels |
|
Power, h. p. |
9400 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1500(12) |
|
Armament |
1 x 1 - 27/63 MLG-27, 2 x 1 - 7.6/90 |
|
Electronic equipment |
Furuno 2217 radar, MEOS II e/o system |
|
Complement |
16 + 5 passengers |
Project history: Lürssen FPB41 design. Carry small RIB.
Modernizations: None.
Naval service: Berkat was damaged 23.2.2014 in collision with Japanese merchant vessel.

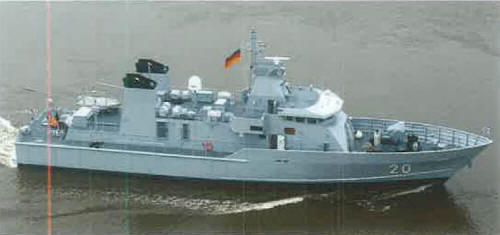

Afiat 2010
