TIKUNA submarine (2005)
similar Tupi 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Tikuna | S34 | Arsenal de Marinha do Rio de Janeiro | 12.6.1996 | 9.3.2005 | 16.12.2005 | in service (2019) | |
| Tapuia | S35 | Arsenal de Marinha do Rio de Janeiro | 1997 | --- | --- | cancelled 2004 |
|
Displacement standard, t |
1250 |
|
Displacement normal, t |
1550 / 1690 |
|
Length, m |
59.5 pp 62.0 oa |
|
Breadth, m |
7.05 |
|
Draught, m |
5.50 |
|
No of shafts |
1 |
|
Machinery |
4 MTU 12V493 TY60 diesel-generators, 1 Siemens electric motor |
|
Power, h. p. |
2400 / 5000 |
|
Max speed, kts |
11 / 25 |
|
Fuel, t |
diesel oil 116 |
| Endurance, nm(kts) | 8200(8) (snorkel) / 400(4) |
|
Armament |
8 - 533 TT (bow, 16 Mk 48 Mod.6) |
|
Electronic equipment |
Scanter radar, CSU-83/1 (DSQS-21) sonar suite, FAS-3, PRS-3/15 sonars, Argus AR-900 ECM suite, ISUS-83/13 CCS |
|
Complement |
41 |
|
Diving depth operational, m |
300 |
Project history: Slightly larger Type 209/1400, Type 209/1450 with improved construction.
Modernizations: 2011: - ISUS-83/13 CCS; + BYG-501 mod.1 CCS
Naval service: No significant events.

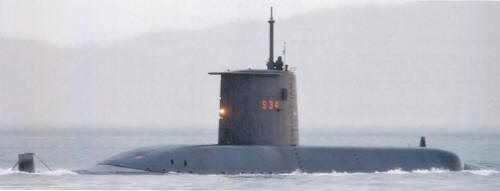

Tikuna 2006
