| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Acre | Yarrow, Scotstoun, UK | 1904 | 1906 | stricken 3.1921 | |||
| Amapá | Yarrow, Scotstoun, UK | 1904 | 1906 | stricken 2.1917 | |||
| Juruá | Yarrow, Scotstoun, UK | 1904 | 1906 | stricken 2.1917 | |||
| Missões | Yarrow, Scotstoun, UK | 1904 | 1906 | stricken 10.1933 |
|
Displacement normal, t |
110 |
|
Displacement full, t |
200 |
|
Length, m |
36.6 |
|
Breadth, m |
6.10 |
|
Draught, m |
0.60 |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 1 Yarrow boiler |
|
Power, h. p. |
300 |
|
Max speed, kts |
11 |
|
Fuel, t |
coal 22 + fire wood |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 87/13 howitzer, 1 x 1 - 57/42 Nordenfelt, 4 x 1 - 7.7/94 |
|
Complement |
30 |
Project history: Built by Yarrow and outfitted in Brazil.
Modernizations: None.
Naval service: No significant events.

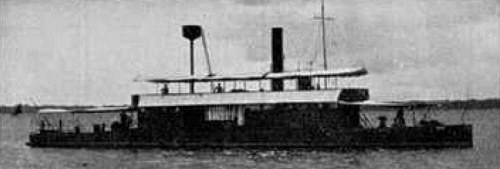

Missões
