Aratu 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Aratu | M15 | Abeking & Rasmussen, Lemwerder, West Germany | 27.5.1970 | 5.5.1971 | in service (2018) | ||
| Anhatomirim | M16 | Abeking & Rasmussen, Lemwerder, West Germany | 4.11.1970 | 30.11.1971 | reserve 2016 | ||
| Atalaia | M17 | Abeking & Rasmussen, Lemwerder, West Germany | 14.4.1971 | 13.12.1972 | in service (2018) | ||
| Araçatuba | M18 | Abeking & Rasmussen, Lemwerder, West Germany | 1971 | 13.12.1972 | in service (2018) | ||
| Abrolhos | M19 | Abeking & Rasmussen, Lemwerder, West Germany | 7.5.1974 | 16.4.1975 | reserve 8.2015 | ||
| Albardão | M20 | Abeking & Rasmussen, Lemwerder, West Germany | 5.9.1974 | 21.7.1975 | in service (2018) |
|
Displacement standard, t |
230 |
|
Displacement full, t |
280 |
|
Length, m |
47.2 |
|
Breadth, m |
7.16 |
|
Draught, m |
2.10 |
|
No of shafts |
2 Escher-Wyss cycloidal propellers |
|
Machinery |
4 Maybach diesels |
|
Power, h. p. |
4500 |
|
Max speed, kts |
24 |
|
Fuel, t |
diesel oil 22 |
| Endurance, nm(kts) |
710(20) |
|
Armament |
1 x 1 - 40/70 Bofors 315, mechanical, acoustic, magnetic minesweeping gear |
|
Electronic equipment |
ZW-06 radar |
| Complement |
32 |
Project history: West German Schütze clas. Wooden hull.
Modernizations: 2000-2007, all: - ZW06 radar; + Furuno 1831 radar
Naval service: No significant events.

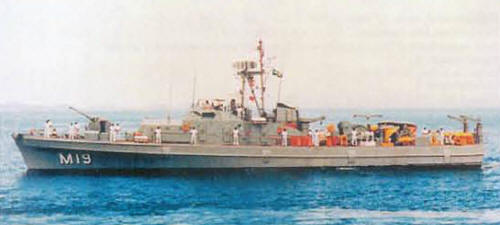

Abrolhos 1998
