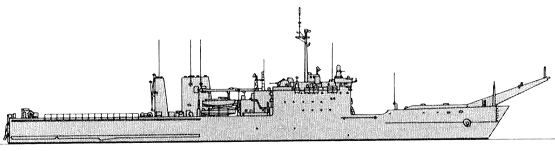

Mattoso Maia 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Mattoso Maia (ex-Cayuga) | G28 | National Steel, San Diego, USA | 28.9.1968 | 12.7.1969 | 8.8.1970 // 26.8.1994 | in service (2019) |
|
Displacement standard, t |
4970 |
|
Displacement full, t |
8450 |
|
Length, m |
159.2 oa over hull, 171.3 oa over derrick arms |
|
Breadth, m |
21.8 |
|
Draught, m |
5.30 |
|
No of shafts |
2 |
|
Machinery |
6 Alco 16-251 diesels |
|
Power, h. p. |
16500 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil 1750 |
| Endurance, nm(kts) | 14250(14) |
|
Armament |
1 x 6 - 20/76 Phalanx Mk 15, 4 x 1 - 12.7/90, helicopter deck |
| Military load | 29 tanks or 2000 t of cargo, 430 troops, 3 LCVP, 1 LCPL |
|
Electronic equipment |
SPS-10F, SPS-64, Furuno FR2120, Mk 90 radars, 2x SRBOC Mk 36 decoy RL |
|
Complement |
186 |
Project history: Former USN Newport class tank landing ship.
Modernizations: None.
Naval service: No significant events.

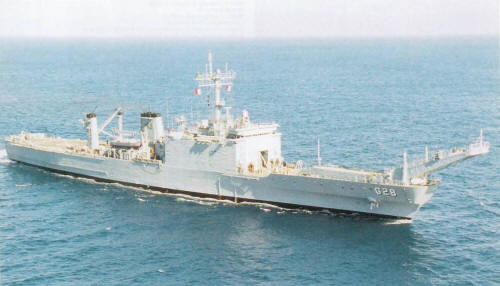

Mattoso Maia 2003
