| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Guarapari | L10, 1991- GED10, 1996- L10 | Arsenal de Marinha do Rio de Janeiro | 16.6.1977 | 27.3.1978 | auxiliary 1991-1996, in service (2019) | ||
| Tambaú | L11, 1991- GED11, 1996- L11 | Arsenal de Marinha do Rio de Janeiro | 14.9.1977 | 27.3.1978 | auxiliary 1991-1996, in service (2019) | ||
| Camboriú | L12, 1991- GED12, 1996- L12 | Arsenal de Marinha do Rio de Janeiro | 27.3.1978 | 6.1.1981 | auxiliary 1991-1996, in service (2019) | ||
| Tramandaí | L13 | Arsenal de Marinha do Rio de Janeiro | --- | --- | abandoned 1983 | ||
| Itaocá | Arsenal de Marinha do Rio de Janeiro | 2019 | building (2019) | ||||
| Itacuruça | Arsenal de Marinha do Rio de Janeiro | 2019 | building (2019) | ||||
| Arsenal de Marinha do Rio de Janeiro | 2019 | building (2019) |
|
Displacement standard, t |
200 |
|
Displacement full, t |
396 |
|
Length, m |
41.0 |
|
Breadth, m |
8.42 |
|
Draught, m |
2.00 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors 12V71N diesels |
|
Power, h. p. |
1000 |
|
Max speed, kts |
11 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
700(7) |
|
Armament |
3 x 1 - 12.7/90 |
|
Military load |
172 t cargo or 120 troops |
|
Electronic equipment |
Furuno 3600 radar |
|
Complement |
6 |
Project history: Brazilian type EDCG (Embarcações de Desembarque de Carga Generales). Have 30.5x5.5m opened cargo deck, bow and stern ramps.
Modernizations: None.
Naval service: No significant events.

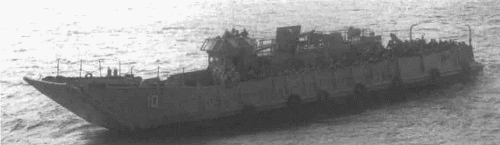

Guarapari 2009
