Garcia d'Avila 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Garcia d'Avila (ex-Outagamie County, ex-LST1073) | G28 | Bethlehem, Hingham, USA | 2.1945 | 22.3.1945 | 17.4.1945 // 21.5.1971 | stricken 1989 |
|
Displacement standard, t |
1653 |
|
Displacement full, t |
4080 |
|
Length, m |
96.3 wl 100.0 oa |
|
Breadth, m |
15.2 |
|
Draught, m |
landing: 1.19 fore, 3.00 aft, sea-going: 2.30 fore, 4.30 aft |
|
No of shafts |
2 |
|
Machinery |
2 General Motors diesels |
|
Power, h. p. |
1700 |
|
Max speed, kts |
11.6 |
|
Fuel, t |
diesel oil 590 |
| Endurance, nm(kts) | 24000 (9) |
|
Armament |
2 x2 - 40/60 Mk 1, 4 x 1 - 40/60 Mk 3 |
| Military load |
2 LCVP, 20 medium tanks (25-t) or 500t of cargo, 147 marines |
|
Electronic equipment |
radar |
|
Complement |
119 |
Project history: Former USN LST(2) class tank landing ship.
Modernizations: None.
Naval service: No significant events.

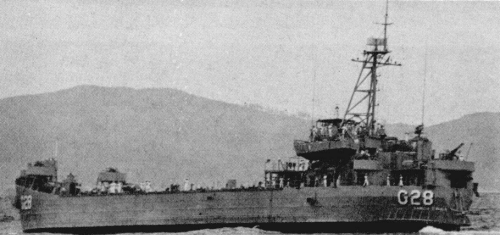

Garcia d'Avila 1977
