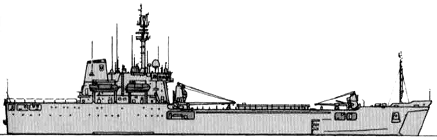

Almirante Saboia 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Almirante Saboia (ex-Sir Bedivere) | G25 | Hawthorn Leslie, Hebburn, UK | 28.10.1965 | 20.7.1966 | 18.5.1967 // 21.5.2009 | in service (2019) |
|
Displacement standard, t |
3390 |
|
Displacement full, t |
6700 |
|
Length, m |
125.4 pp 137.5 oa |
|
Breadth, m |
19.6 |
|
Draught, m |
4.80 |
|
No of shafts |
2 |
|
Machinery |
2 Stork-Wärtsilä 12SW280 diesels |
|
Power, h. p. |
9930 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil 850 |
|
Endurance, nm(kts) |
9200(15) |
|
Armament |
4 x 1 - 20/90 GAM-B01, 4 x 1 - 7.6/90, helicopter deck |
|
Military load |
16 tanks, 34 vehicles, 400 troops, 4 LCVP |
|
Electronic equipment |
type 1007, Decca 2690, Furuno 1942 radars, 2x Shield decoy RL |
|
Complement |
95 |
Project history: Former RN Sir Lancelot class tank landing ship, lengthened and modernized before transfer.
Modernizations: None.
Naval service: No significant events.
