Pedro Teixeira 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Pedro Teixeira | P20 | Arsenal de Marinha do Rio de Janeiro | 14.10.1970 | 17.12.1973 | in service (2019) | ||
| Raposo Tavares | P21 | Arsenal de Marinha do Rio de Janeiro | 11.6.1972 | 17.12.1973 | in service (2019) |
|
Displacement standard, t |
660 |
|
Displacement full, t |
700 |
|
Length, m |
63.6 |
|
Breadth, m |
9.71 |
|
Draught, m |
1.65 |
|
No of shafts |
2 |
|
Machinery |
2 MEP-MAN V6V16/18TLS diesels |
|
Power, h. p. |
3840 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 6800(10) |
|
Armament |
1 x 1 - 40/70 Bofors 564, 4 x 1 - 12.7/90, 2 x (1 - 81/12 mortar + 1 - 12.7/90), 2 x 1 - 7.6/90, 1 helicopter (UH-12 Esquilo) |
| Military load | 2 LCVP, 80 troops |
|
Electronic equipment |
2x Decca radars |
|
Complement |
58 |
Project history: River patrol ships of indigenous design. Amazon flotilla. Troops can be carried in removable hangar / accommodations.
Modernizations: 2012, Raposo Tavares; 2013, Pedro Teixeira: - Decca radar; + Furuno 8062 radar; diesels were replaced by 2 Volvo-Penta D49A-MS (4800hp, 16kts, 6800(13)nm)
Naval service: No significant events.

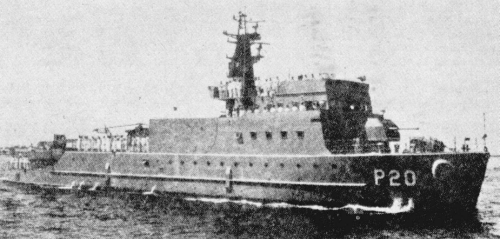

Pedro Teixeira 1974

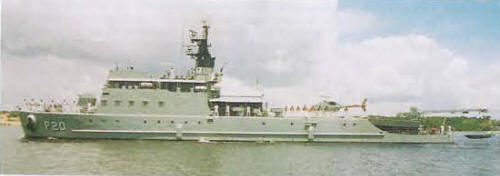

Pedro Teixeira 1997
