Greenhalgh 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Greenhalgh (ex-Broadsword) | F46 | Yarrow SB, Scotstoun, UK | 7.2.1975 | 12.5.1976 | 4.5.1979 // 30.6.1995 | in service (2019) | |
| Dodsworth (ex-Brilliant) | F47 | Yarrow SB, Scotstoun, UK | 25.3.1977 | 15.12.1978 | 15.5.1981 // 30.8.1996 | stricken 3.2004 | |
| Bosísio (ex-Brazen) | F48 | Yarrow SB, Scotstoun, UK | 18.8.1978 | 4.3.1980 | 2.7.1982 // 30.8.1996 | stricken 9.2015 | |
| Rademaker (ex-Battleaxe) | F49 | Yarrow SB, Scotstoun, UK | 4.2.1976 | 18.5.1977 | 28.3.1980 // 30.4.1997 | in service (2019) |
|
Displacement standard, t |
3900 |
|
Displacement full, t |
4730 |
|
Length, m |
125.0 wl 131.2 oa |
|
Breadth, m |
14.8 |
|
Draught, m |
4.30 hull 6.00 sonar dome |
|
No of shafts |
2 |
|
Machinery |
COGOG: 2 Rolls-Royce Olympus TM3B gas turbines / 2 Rolls-Royce Tyne RM1A gas turbines |
|
Power, h. p. |
54600 / 8200 |
|
Max speed, kts |
29 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
4500(18) |
|
Armament |
2 x 2 MM38 Exocet SSM (4 MM38), 2 x 6 Sea Wolf GWS25 Mod.4 SAM (60 Sea Wolf GWS25), 2 x 1 - 40/70 Bofors 564, 2 x 1 - 20/90 GAM-B01, 2 x 3 - 324 STWS.2, 2 helicopters (AH-11 Lynx) |
|
Electronic equipment |
F46, 47: type 967, type 968, 2x type 910, type 1006 radars, type 2050 sonar, UAA-2, 2x type 670 ECM suites, 4x DLB decoy RL, 2x DEC laser-dazzlers, type 182 torpedo decoy, CAAIS CCS F48: type 967, type 968, 2x type 910, type 1006 radars, type 2016 sonar, UAA-2, 2x type 670 ECM suites, 4x DLB decoy RL, 2x DEC laser-dazzlers, type 182 torpedo decoy, CAAIS CCS F49: type 967, type 968, 2x type 910, type 1006 radars, type 2016 sonar, UAA-2, 2x type 670 ECM suites, 4x DLB, 4x DLD decoy RL, 2x DEC laser-dazzlers, type 182 torpedo decoy, CAAIS CCS |
|
Complement |
239 |
Project history: Former RN Broadsword class Batch 1 frigates. Are equipped with berthing and training facilities for 65 officer trainees.
Modernizations: 2000s, all: - 2 x 2 MM38 Exocet SSM, CAAIS CCS; + 2 x 2 MM40 Exocet SSM (4 MM40), Siconta-4 CCS
Naval service: No significant events.

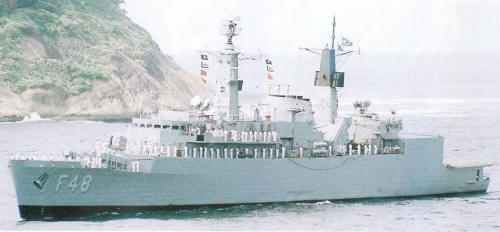

Bosísio 2005
