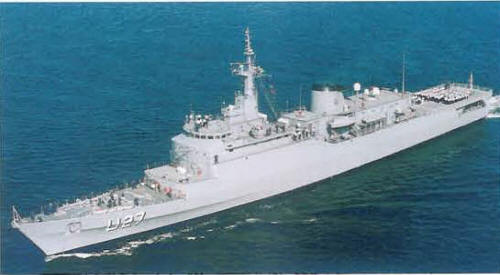

Brasil 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Brasil | U27 | Arsenal de Marinha do Rio de Janeiro | 18.9.1981 | 23.9.1983 | 21.8.1986 | in service (2019) |
|
Displacement standard, t |
2548 |
|
Displacement full, t |
3729 |
|
Length, m |
131.3 |
|
Breadth, m |
13.5 |
|
Draught, m |
4.21 mean |
|
No of shafts |
2 |
|
Machinery |
2 Ishikawajima do Brasil-Pielstick 6PC2-5L400 diesels |
|
Power, h. p. |
7800 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
7000(15) |
|
Armament |
2 x 1 - 40/70 Bofors 564, 4 x 1 - 47/40 3pdr saluting, helicopter deck |
|
Electronic equipment |
Decca 1230, Decca 1226, Furuno radars, RDL-2ABC ECM suite |
|
Complement |
207 + 200 cadets |
Project history: Uses hull of the Mk 10 frigate design but has less powerful propulsion plant and far simpler weapons and electronics. Has a command center with three remote training command spaces, navigational training compartment for 40 trainees, and two other classrooms. Planned 76mm Oto Melara Compact mount forward was not installed, nor was the planned helicopter hangar, although the helicopter platform can accommodate one Sea King helicopter. There is a single remote TVT-300 optical director for the two 40mm gunmounts.
Modernizations: None.
Naval service: No significant events.

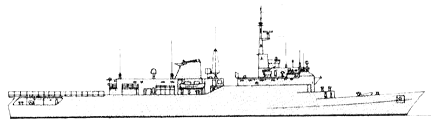

Brasil 2008
