Tiradentes 1893
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Tiradentes | Armstrong, Newcastle, UK | 1891 | 26.5.1892 | 1893 | discarded 7.1925 |
|
Displacement normal, t |
795 |
|
Displacement full, t |
|
|
Length, m |
50.3 pp |
|
Breadth, m |
9.14 |
|
Draught, m |
3.28 mean |
|
No of shafts |
2 |
|
Machinery |
2 VTE |
|
Power, h. p. |
1646 |
|
Max speed, kts |
14.5 |
|
Fuel, t |
coal 110 |
|
Endurance, nm(kts) |
|
|
Armour, mm |
steel; CT: 25 |
|
Armament |
4 x 1 - 120/40 Armstrong T, 3 x 1 - 57/40 Hotchkiss, 2 x 1 - 356 TT |
|
Complement |
110 |

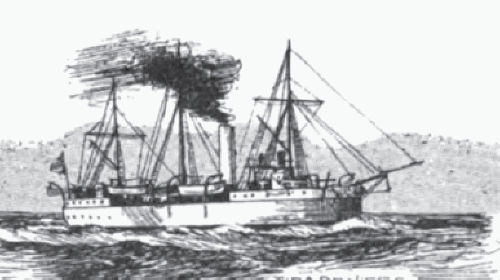

Project history: Steel-hulled, wood-sheathed vessel with one funnel, raised forecastle and poop. 120mm guns were mounted fore and aft. Ship had bowsprit and three masts.
Ship protection: Only CT had 25mm sides.
Modernizations: None.
Naval service: No significant events.
Tiradentes
