Gustavo Sampaio 1914
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Gustavo Sampaio | Armstrong, Elswick, UK | 1891 | 1893 | 10.1893 | disarmed 5.1912 |
|
Displacement normal, t |
480 |
|
Displacement full, t |
|
|
Length, m |
60.0 pp |
|
Breadth, m |
6.10 |
|
Draught, m |
2.59 mean |
|
No of shafts |
2 |
|
Machinery |
2 VTE |
|
Power, h. p. |
2000 |
|
Max speed, kts |
18 |
|
Fuel, t |
coal 150 |
|
Endurance, nm(kts) |
|
|
Armour, mm |
steel; CT: 19 |
|
Armament |
2 x 1 - 89/40 Armstrong 20pdr QF, 4 x 1 - 47/40 Hotchkiss, 1 - 356 TT (bow), 2 x 1 - 356 TT |
|
Complement |
60 |
Project history: This steel-hulled vessel had a raised forecastle, one funnel and two masts. The 20pdr QF were mounted fore and aft and there was a fixed bow TT and two trainable tubes, one on each side abaft the break of the forecastle. She was wood-sheathed. Built by Armstrong as the stock ship Aurora, she was renamed Gustavo Sampaio on purchase by Brazil on 8.10.1893.
Ship protection: Only CT had 19mm sides.
Modernizations: None.
Naval service: No significant events.

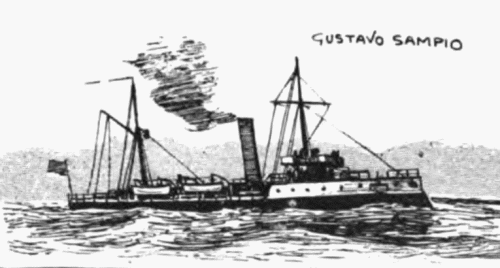

Gustavo Sampaio 1900
