| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Trajano, 1896- Tonelero | Arsenal de Marinha, Rio de Janeiro | 12.7.1873 | 1873 | stricken 4.1906 |
|
Displacement normal, t |
1392 |
|
Displacement full, t |
|
|
Length, m |
61.0 pp |
|
Breadth, m |
10.5 |
|
Draught, m |
4.70 |
|
No of shafts |
1 |
|
Machinery |
1 HC |
|
Power, h. p. |
2400 |
|
Max speed, kts |
11 |
|
Fuel, t |
coal 120 |
|
Endurance, nm(kts) |
|
|
Armament |
6 x 1 - 127/24 Whitworth 70pdr MLR |
|
Complement |
206 |
Project history: Wooden-hulled, barque-rigged sloop with one funnel.
Modernizations: None.
Naval service: She was later classed as a second class cruiser after reconstruction 1896-6, and renamed Tonelero.

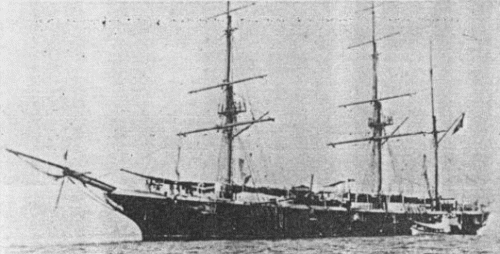

Trajano
© Ivan Gogin, 2014
