Piratini 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Piratini | P10 | Arsenal de Marinha, Rio de Janeiro | 11/1970 | in service (2019) | |||
| Pirajá | P11 | Arsenal de Marinha, Rio de Janeiro | 3/1971 | in service (2019) | |||
| Pampeiro | P12 | Arsenal de Marinha, Rio de Janeiro | 6/1971 | in service (2019) | |||
| Parati | P13 | Arsenal de Marinha, Rio de Janeiro | 7/1971 | in service (2019) | |||
| Penedo | P14 | Arsenal de Marinha, Rio de Janeiro | 9/1971 | in service (2019) | |||
| Poti | P15 | Arsenal de Marinha, Rio de Janeiro | 10/1971 | in service (2019) |
|
Displacement standard, t |
102 |
|
Displacement full, t |
146 |
|
Length, m |
29.0 |
|
Breadth, m |
5.80 |
|
Draught, m |
1.55 |
|
No of shafts |
2 |
|
Machinery |
4 Cummins VT-12M diesels |
|
Power, h. p. |
1100 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1700(12) |
|
Armament |
1 x (1 - 12.7/90 + 1 - 81/12 M29 mortar), 2 x 1 - 12.7/90 |
|
Electronic equipment |
Decca RM1070A radar |
|
Complement |
17 |
Project history: Design was based on the USCG 95ft WPB type.
Modernizations: late 1990s, all: were armed with 1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90, 1 x 1 - 81/12 M29 mortar, Decca RM1070A and Furuno 3600 radars
Naval service: No significant events.

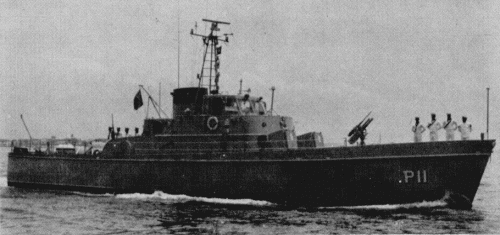

Pirajá 1977

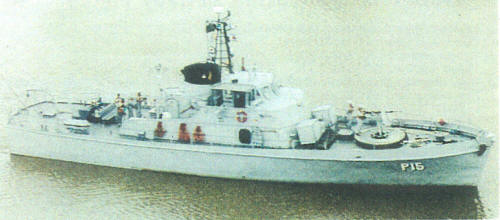

Potí 1998
