BELGIAN NAVY (BELGIUM)

MINE WARFARE SHIPS

J. E. VAN HAVERBEKE ocean minesweepers (1955-1960, 1955/1966)

J. E. Van Haverbeke 1965

A. F. Dufour 1980

Name No Yard No Builder Laid down Launched Comp Fate
J. E. Van Haverbeke M902   Peterson Builders, Sturgeon Bay, USA 3.1959 29.10.1959 12.1960 stricken 2001
A. F. Dufour (ex-Lången) M903   Bellingham SY, USA 2.1954 13.8.1954 9.1955 // 4.1966 stricken 2001
De Brouwer (ex-Mansen) M904   Bellingham SY, USA 4.1954 15.10.1954 11.1955 // 4.1966 stricken 1993
Breydel M906   Tacoma BB, USA 11.1954 25.3.1955 2.1956 stricken 1993
Artevelde M907   Tacoma BB, USA 10.1953 19.6.1954 12.1955 diving vessel 1972-1974, stricken 1985
Georges Truffaut M908   Tampa SB, USA 2.1955 11.11.1955 10.1956 stricken 2001
François Bovesse M909   Tampa SB, USA 4.1954 2.8.1956 1.1957 stricken 2001



Displacement standard, t

720

Displacement full, t

780

Length, m

50.3 wl 52.4 oa

Breadth, m

11.0

Draught, m

4.20

No of shafts

2

Machinery

2 General Motors diesels

Power, h. p.

1520

Max speed, kts

14

Fuel, t

diesel oil

Endurance, nm(kts)

3000(10)

Armament

1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90, A Mk 2, A Mk 4, A Mk 6 acoustic, M Mk 5, M Mk 6, M Mk 7 magnetic, Oropesa No.1 mechanical minesweeping gear

Electronic equipment

SPS-53 radar, UQS-1 sonar

Complement

72

Project history: US Aggressive/Agile class, transferred under MDAP shortly after completion, two units were acquired from Norway in 1966 in exchange for three Adjutant class coastal minesweepers.

Modernizations: 1972, Artevelde: - minesweeping gear; + diving equipment

1973, De Brouwer; 1974, A. F. Dufour; 1975, J. E. Van Haverbeke; 1976, Breydel, Georges Truffaut, François Bovesse: as minehunters - 1 x 1 - 40/60, UQS-1 sonar; + 1 x 2 - 12.7/90, SQQ-14 sonar, decompression chamber, diving equipment

1974, Artevelde: + decompression chamber

Naval service: No significant events.

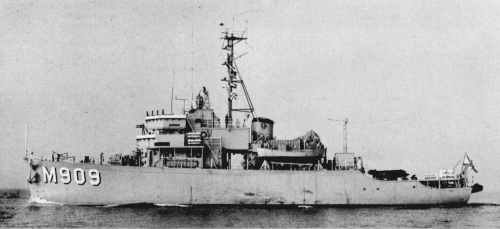

François Bovesse 1980
