Aster 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Aster | M915 | Béliard, Ostende et Rupelmonde | 26.4.1983 | 29.6.1984 | 18.12.1985 | in service (2019) | |
| Bellis | M916 | Béliard, Ostende et Rupelmonde | 9.2.1984 | 22.2.1985 | 14.8.1986 | in service (2019) | |
| Crocus | M917 | Béliard, Ostende et Rupelmonde | 9.10.1984 | 6.8.1986 | 5.2.1987 | in service (2019) | |
| Dianthus | M918 | Béliard, Ostende et Rupelmonde | 4.4.1985 | 16.4.1986 | 18.8.1987 | stricken 7.1993, to France (Capricorne) | |
| Fuchsia | M919 | Béliard, Ostende et Rupelmonde | 31.10.1985 | 21.11.1986 | 18.2.1988 | stricken 7.1993, to France (Céphée) | |
| Iris | M920 | Béliard, Ostende et Rupelmonde | 23.5.1986 | 19.6.1987 | 3.10.1988 | stricken 7.1993, to France (Verseau) | |
| Lobelia | M921 | Béliard, Ostende et Rupelmonde | 4.12.1986 | 3.2.1988 | 10.5.1989 | in service (2019) | |
| Myosotis | M922 | Béliard, Ostende et Rupelmonde | 6.7.1987 | 4.10.1988 | 14.12.1989 | stricken 3.2004, to Bulgaria (Öèáúð [Tsibar]) | |
| Narcis | M923 | Béliard, Ostende et Rupelmonde | 25.2.1988 | 20.6.1989 | 27.9.1990 | in service (2019) | |
| Primula | M924 | Béliard, Ostende et Rupelmonde | 10.11.1988 | 8.7.1990 | 18.5.1991 | in service (2019) |
|
Displacement standard, t |
511 |
|
Displacement normal, t |
595 |
|
Length, m |
47.1 pp 51.6 oa |
|
Breadth, m |
8.96 |
|
Draught, m |
2.49 hull 3.80 max |
|
No of shafts |
1 + 2 Schottel active rudders |
|
Machinery |
1 Werkspoor-Wärtsilä A-RUB215 V12 diesel |
|
Power, h. p. |
1900 + 240 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3000(12) |
|
Armament |
1 x 1 - 20/90 20F-2, 2x PAP-104 Mk 5 USV, OD-3 mechanical minesweeping gear |
|
Electronic equipment |
Decca 1229 radar, DUBM-21B sonar |
|
Complement |
45 |
Project history: Belgian contribution to the 'Tripartite' minehunter programme. Hulls were built at Ostend in a purpose-built 'ship factory' and then towed to Béliard at Rupelmonde for fitting-out. The ship's company varies from 23 to 46 according to task, six divers are carried when minehunting. A portable decompression chamber van can be carried in 01 deck abaft the forecastle break. When ships are deployed in dangerous areas they carry also two 12.7mm/90 MGs.
Modernizations: 2005, Primula; 2006, Crocus; 2007, Aster; 2008, Bellis; 2009, Lobelia, Narcis: - 2x PAP-104 USVs, Decca 1229 radar, DUBM-21B sonar; + 2x Sea Fox USVs, Sterne magnetic minesweeping gear, Decca 1229C radar, TSM 2022 Mk 3, PVDS Double Eagle Mk 3 sonars, IMCMS CCS
Naval service: Aster was damaged in a collision 11.10.2007 and returned to service in January 2009.

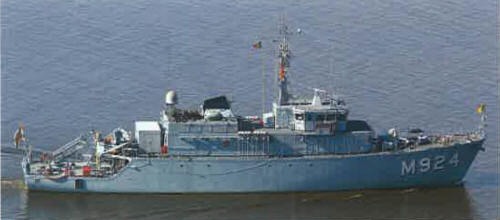

Primula 2013
© Ivan Gogin, 2019
