Shapla 2000
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
|
শাপলা [Shapla] (ex-Waveney) |
M95 |
562 | Richards SB, Lowestoft, UK | 21.2.1983 | 8.9.1983 | 2.5.1984 // 3.10.1994 | in service (2020) |
| সৈকত [Shaikat] (ex-Carron) | M96 | Richards SB, Great Yarmouth, UK | 21.2.1983 | 23.9.1983 | 29.9.1984 // 3.10.1994 | in service (2020) | |
| সুরভী [Surovi] (ex-Dovey) | M97 | Richards SB, Great Yarmouth, UK | 3.3.1983 | 1.12.1983 | 30.3.1985 // 3.10.1994 | in service (2020) | |
| শৈবাল [Shaibal] (ex-Helford) | M98 | Richards SB, Great Yarmouth, UK | 12.10.1983 | 16.5.1984 | 7.6.1985 // 3.10.1994 | in service (2020) |
|
Displacement standard, t |
770 |
|
Displacement full, t |
890 |
|
Length, m |
42.0 pp 47.6 oa |
|
Breadth, m |
10.5 |
|
Draught, m |
3.10 hull 3.75 max |
|
No of shafts |
2 |
|
Machinery |
2 Ruston 6RKCM diesels |
|
Power, h. p. |
3040 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil 88 |
| Endurance, nm(kts) | 4500(10) |
|
Armament |
1 x 1 - 40/60 Mk 9, 2 x 1 - 7.6/90, Mk 9 Team Sweep System mechanical minesweeping gear |
|
Electronic equipment |
2x Decca 1226 radars |
|
Complement |
30 |
Project history: Former RN River-class ocean minesweepers, recommissioned 27.4.1995.
Modernizations: 1997, Shapla, Surovi: + CMAS-36/39 sonar
Naval service: No significant events.

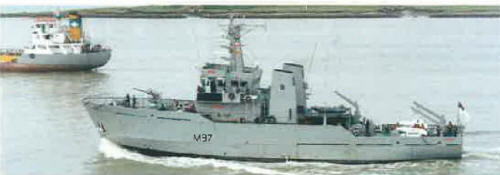

Surovi 1998
