Sagar 2000
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
|
সাগর [Sagar] |
M91 |
Guangzhou SY, China | 27.4.1995 | in service (2020) |
|
Displacement standard, t |
500 |
|
Displacement full, t |
600 |
|
Length, m |
60.0 |
|
Breadth, m |
8.60 |
|
Draught, m |
2.60 |
|
No of shafts |
2 |
|
Machinery |
2 9D diesels |
|
Power, h. p. |
2200 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil 70 |
|
Endurance, nm(kts) |
3200(10) |
|
Armament |
2 x 2 - 37/63 type 61, 2 x 2 - 25/80 type 61, 2 x 2 - 14.5/93, 2 DCT, 16 - 12 mines, MT-2 mechanical, TEM-52 magnetic, 2 BAT-2 acoustic minesweeping gear |
|
Electronic equipment |
type 756 radar, Tamir-11 sonar |
|
Complement |
70 |
Project history: Chinese modified project 010 minesweeper.
Modernizations: 1997: - Tamir-11 sonar; + CMAS-36/39 sonar
Naval service: No significant events.

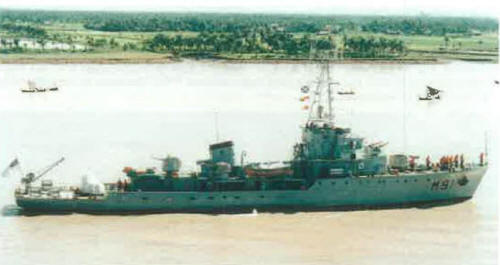

Sagar 1998
