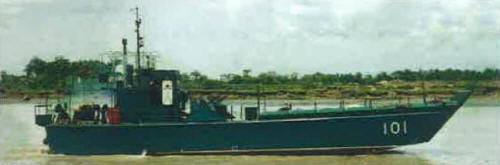

LCT101 1990
|
Names |
A584 - 587 LCT101-104 |
|
Builders |
China: A584-587 |
|
Commissioned |
1960s // 1986: A584-587 |
|
Losses |
A586 (cyclone 4.1991) |
|
Transfers |
none |
|
Discarding |
in service (2020): A584, 585, 587 |
|
Displacement standard, t |
58 |
|
Displacement full, t |
85 |
|
Length, m |
24.8 |
|
Breadth, m |
5.20 |
|
Draught, m |
1.30 |
|
No of shafts |
2 |
|
Machinery |
2 12V150C diesels |
|
Power, h. p. |
600 |
|
Max speed, kts |
11.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 450(11.5) |
|
Armament |
2 x 2 - 14.5/93 |
| Military load |
50 t of cargo or 150 troops |
|
Electronic equipment |
none |
| Complement | 12 |
Project history: Former Chinese type 068/069 craft.
Modernizations: None.
Naval service: No significant events.
LCT101 1992
