HDF01 1980
|
Names |
T8235-8238 TB35-38 (ex-HDF01 - 04) |
|
Builders |
Hudong SY, Shanghai, China or Chuangxin SY, China: T8235-8238 |
|
Commissioned |
1973 // 1992: T8235-8238 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2015: T8235-8238 |
|
Displacement standard, t |
39 |
|
Displacement full, t |
45 |
|
Length, m |
22.5 |
|
Breadth, m |
3.80 wl, 6.26 over foils |
|
Draught, m |
1.15 propellers 1.12 over foils |
|
No of shafts |
3 |
|
Machinery |
3 M-50F-4 diesels |
|
Power, h. p. |
3600 |
|
Max speed, kts |
50 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
500(30) |
|
Armament |
2 x 2 - 14.5/93, 2 - 533 TT |
|
Sensors |
Zarnitsa radar |
|
Complement |
11 |
Project history: Former Pakistani Chinese-built project 025 hydrofoils, transferred after 1991 cyclone.
Modernizations: None.
Naval service: No significant events.

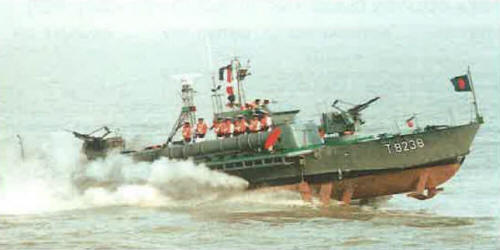

TB38 2003
