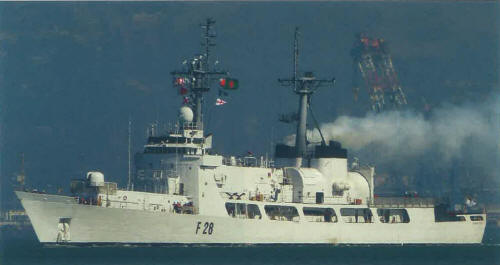

Somudra Joy 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| সমুদ্র জয় [Somudra Joy] (ex-Jarvis) | F28 | 1561 | Avondale SY, Westwego, USA | 9.9.1970 | 24.4.1971 | 30.12.1971 // 23.5.2013 | in service (2020) |
| সমুদ্র অভিযান [Somudra Avijan] (ex-Rush) | F29 | 1183 | Avondale SY, Westwego, USA | 23.10.1967 | 16.11.1968 | 3.7.1969 // 6.5.2015 | in service (2020) |
|
Displacement standard, t |
2716 |
|
Displacement full, t |
3050 |
|
Length, m |
106.7 wl 115.2 oa |
|
Breadth, m |
13.1 |
|
Draught, m |
6.20 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 Fairbank Morse 38TD81/8 diesels / 2 Pratt & Whitney FT4A6 gas turbines |
|
Power, h. p. |
7000 / 36000 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel oil 800 |
|
Endurance, nm(kts) |
14000(11) |
|
Armament |
1 x 1 - 76/62 Mk 75, 4 x 1 - 12.7/90, 1 helicopter (AW-109 Power) |
|
Electronic equipment |
SPS-73, SPS-64(v)6, Mk 92 radars, WLR-1H(v)5, WLR-3 ECM suites, 2x SRBOC Mk 36 decoy RL, SCCS CCS |
|
Complement |
90 |
Project history: Former USCG Hamilton class cutters.
Modernizations: None.
Naval service: No significant events.
Somudra Joy 2013
