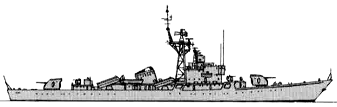

Osman 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| ওসমান [Osman] (ex-湘潭 [Xiangtan]) | F18 | Huangpu SY, Guangzhou, China | 14.7.1987 | 20.12.1987 // 26.9.1989 | in service (2020) |
|
Displacement standard, t |
1425 |
|
Displacement full, t |
1700 |
|
Length, m |
103.2 |
|
Breadth, m |
10.2 |
|
Draught, m |
3.10 |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 12PA6 280BTC diesels |
|
Power, h. p. |
16000 |
|
Max speed, kts |
25.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4000(15) |
|
Armament |
2 x 2 Hai Ying-2A SSM (4 C-201A), 2 x 2 - 100/56 type 79, 4 x 2 - 37/63 type 76, 2 x 5 type 81 ASWRL, 4 DCT, 2 DCR, mines |
|
Sensors |
3x type 756, type 354, type 352C, type 343, type 341 radars, SJD-5 sonar, type 931-1 ECM suite, 2x Mk 36 SRBOC decoy RL, ZKJ-3 CCS |
|
Complement |
200 |
Project history: Former Chinese type 053H1 frigate.
Modernizations: 2008: - 2 x 2 Hai Ying-2A SSM; + 2 x 4 Ying Ji-83 SSM (8 C-802)
Naval service: Osman was badly damaged in August 1991 in collision with cargo vessel.

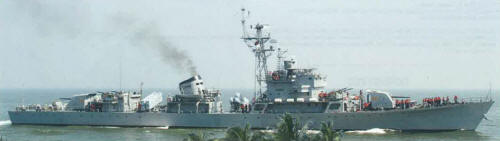

Osman 2011
