Karnaphuli 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| কর্ণফুলী [Karhaphuli] (ex-ÏÁÐ502 [PBR502]) | P314 | 318 | Tito SYd, Kraljevica, Yugoslavia | 1954 // 6.6.1975 | in service (2020) | ||
| তিস্তা [Tista] (ex-ÏÁÐ505 [PBR505]) | P315 | 322 | Tito SYd, Kraljevica, Yugoslavia | 1955 // 6.6.1975 | in service (2020) |
|
Displacement standard, t |
195 |
|
Displacement full, t |
220 |
|
Length, m |
41.0 |
|
Breadth, m |
6.30 |
|
Draught, m |
1.70 |
|
No of shafts |
2 |
|
Machinery |
2 MAN W8V30/38 diesels |
|
Power, h. p. |
3300 |
|
Max speed, kts |
17 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1000(12) |
|
Armament |
2 x 1 - 40/60 Mk 3, 4 x 1 - 20/70 Mk 10, 2 x 5 RBU-1200 ASWRL, 2 DCT, 2 DCR |
|
Electronic equipment |
Decca 45 radar, QCU-2 sonar |
| Complement | 45 |
Project history: Former Yugoslavian Kraljevica-class patrol boats.
Modernizations: 1995, Karnaphuli; 1998, Tista: diesel were replaced by 2 Paxman 12VP185 (7000hp, 24kts); - Decca 45 radar; + Decca 1229 radar
Naval service: No significant events.

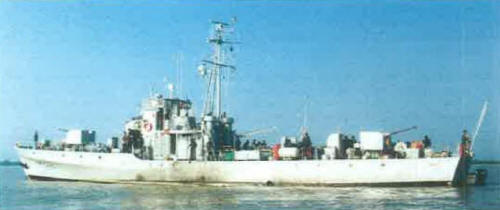

Tista 1999
