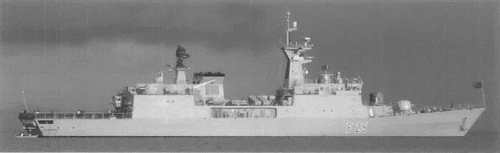

Bangabandhu 2005
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| বঙ্গবন্ধু [Bangabandhu], 7.2007- খালিদ বিন ওয়ালিদ [Khalid Bin Walid], 2009- বঙ্গবন্ধু [Bangabandhu] | F25 | Daewoo, Okpo, South Korea | 12.5.1999 | 29.8.2000 | 20.6.2001 | in service (2020) |
|
Displacement standard, t |
2170 |
|
Displacement full, t |
2370 |
|
Length, m |
103.7 |
|
Breadth, m |
12.5 |
|
Draught, m |
3.80 |
|
No of shafts |
2 |
|
Machinery |
4 SEMT-Pielstick 12PA6 V280STC diesels |
|
Power, h. p. |
22500 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4000(18) |
|
Armament |
2 x 2 Otomat Mk 2 Block IV SSM (4 Otomat Mk 2 Block IV), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 2 - 40/70 Vespa, 2 x 1 - 12.7/90, 2 x 3 - 324 B515 TT (A244), 1 helicopter (A-109 Power) |
|
Sensors |
DA-08, Variant, 2x type 1007, LIROD Mk 2 radars, Mirador e/o system, ASO90 sonar, Cutlass 242, Scorpion ECM suites, 2x SuperBarricade decoy RL, TACTICOS CCS |
|
Complement |
196 |
Project history: DW2000H design, ordered in 1997. Development of Ulsan class.
Modernizations: 2011: + 1 x 8 FM-90 SAM (8 HQ-7A)
Naval service: Bangabandhu was decommissioned in February 2002 for repairs as result of numerous defects in the machinery and combat systems and returned to service only in July 2007.

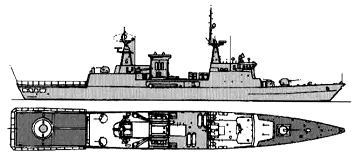

Bangabandhu 2012
