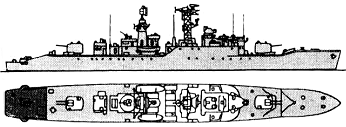

Ali Haider 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| আবু বকর [Abu Bakr] (ex-Lynx) | F15 | 679 | John Brown, Clydebank, UK | 13.8.1953 | 12.1.1955 | 14.3.1957 // 12.3.1982 | stricken 1.2014 |
| আলী হায়দার [Ali Haider] (ex-Jaguar) | F17 | 1476 | Denny, Dumbarton, UK | 2.11.1953 | 20.7.1957 | 12.12.1959 // 6.7.1978 | stricken 1.2014 |
|
Displacement standard, t |
2300 |
|
Displacement full, t |
2520 |
|
Length, m |
100.6 pp 103.6 oa |
|
Breadth, m |
12.2 |
|
Draught, m |
3.60 |
|
No of shafts |
2 |
|
Machinery |
8 16VVS ASR1 diesels |
|
Power, h. p. |
14400 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil 230 |
|
Endurance, nm(kts) |
7500(16) |
|
Armament |
2 x 2 - 120/45 Mk 6, 1 x 1 - 40/60 Mk 7, 2 x 1 - 20/70 Mk 4 |
|
Electronic equipment |
type 275, type 965 AKE-1, type 974, type 993 radars, UA-4 ECM suite |
|
Complement |
235 |
Project history: Former RN Leopard class frigates, transferred after removing of all ASW equipment.
Modernizations: None.
Naval service: No significant events.

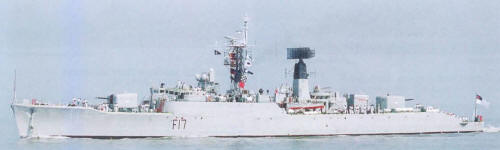

Ali Haider 2001
Many thanks to Shafkat Shamim Rahman for correction of information on this page.
