BANGLADESH NAVY (BANGLADESH)

COASTAL FORCES

PADMA patrol craft (2013-)

Name No Yard No Builder Laid down Launched Comp Fate
পদ্মা [Padma] P312   Khulna SYd 5.3.2011 8.10.2012 24.1.2013 in service (2020)
সুরমা [Surma] P313   Khulna SYd 5.3.2011 23.1.2013 6.5.2013 in service (2020)
অপরাজেয় [Aparajeya] P261   Khulna SYd 5.3.2011 23.6.2013 16.12.2013 in service (2020)
অদম্য [Adamya] P262   Khulna SYd 5.3.2011 8.9.2013 16.12.2013 in service (2020)
তন্দ্রা [Atandra] P263   Khulna SYd 5.3.2011 2013 16.12.2013 in service (2020)
vi     Khulna SYd 2.12.2019 2021 2021 building (2020)
vii     Khulna SYd 2.12.2019 2021 2021 building (2020)
vii     Khulna SYd 2.12.2019 2021 2021 building (2020)
ix     Khulna SYd 2.12.2019 2021 2021 building (2020)
x     Khulna SYd 2.12.2019 2021 2021 building (2020)



Displacement standard, t

255

Displacement full, t

270

Length, m

50.4 pp 54.0 oa

Breadth, m

7.50

Draught, m

1.90

No of shafts

2

Machinery

4 Deutz TBD620V8 diesels

Power, h. p.

6265

Max speed, kts

23

Fuel, t

diesel oil

Endurance, nm(kts)



Armament

2 x 2 - 37/63 type 76, 2 x 1 - 20/70 Mk 4

Sensors

radar

Complement

31

Project history: Patrol craft built in collaboration with Shnghai Hudong shipyard by Chinese design. First batch was ordered in 2010, the second in 2019. Operate for the Ministry of Agriculture by the navy for 200nm EEZ patrol and fishery protection duties.

Modernizations: None.

Naval service: No significant events.

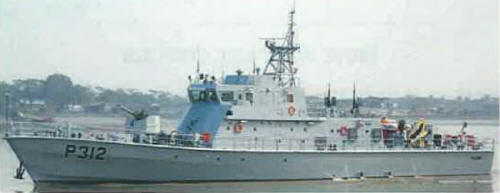

Padma 2013
