Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
মেঘনা [Meghna] | P211 | Vosper Pty, Singapore | 6.5.1984 | late 1984 | in service (2020) | ||
যমুনা [Jamuna] | P212 | Vosper Pty, Singapore | 25.9.1984 | late 1984 | in service (2020) |
Displacement standard, t |
|
Displacement full, t |
410 |
Length, m |
46.5 |
Breadth, m |
7.50 |
Draught, m |
2.00 |
No of shafts |
2 |
Machinery |
2 Paxman Valenta 12CM diesels |
Power, h. p. |
6000 |
Max speed, kts |
20 |
Fuel, t |
diesel oil 42 |
Endurance, nm(kts) |
2000(16) |
Armament |
2 x 2 - 40/60 Mk 1, 2 x 1 - 7.6/90 |
Sensors |
Decca TM1229 radar |
Complement |
48 |
Project history: Operate for the Ministry of Agriculture by the navy for 200nm EEZ patrol and fishery protection duties.
Modernizations: 1990s, both: - 2 x 2 - 40/60; + 1 x 1 - 57/70 SAK-57 Mk 1, 1 x 1 - 40/70 Bofors 315, NA18B e/o system
Naval service: Both were damaged by cyclone in April 1991 but later repaired. Jamuna was damaged in December 2003 at Chittagong in collision with container ship.

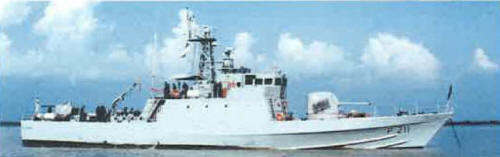

Meghna 2003
