Al Riffa 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| الريفى [Al Riffa} | 10 | Lürssen, Vegesack, West Germany | 1980 | 4.1981 | 8/1981 | in service (2020) | |
| حوار [Hawar] | 11 | Lürssen, Vegesack, West Germany | 1980 | 7.1981 | 11/1981 | in service (2020) |
|
Displacement standard, t |
188 |
|
Displacement full, t |
205 |
|
Length, m |
36.0 pp 38.8 oa |
|
Breadth, m |
7.00 |
|
Draught, m |
2.20 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V538 TB92 diesels |
|
Power, h. p. |
9000 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1100(16) |
|
Armament |
1 x 2 - 40/70 Breda-Bofors Compact Twin 40, mines |
|
Electronic equipment |
Decca 1226, 9GR600 radars, Lynx e/o system, RDL-2 ECM suite, Barricade decoy RL |
|
Complement |
27 |
Project history: Lürssen FPB38 type, ordered in 1979.
Modernizations: None.
Naval service: No significant events.

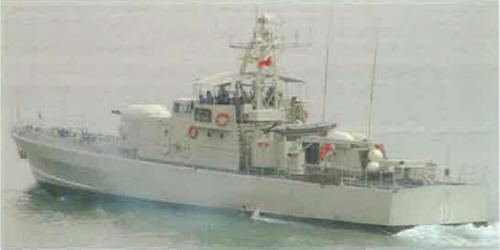

Hawar 2003
