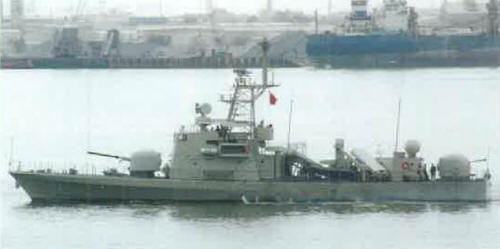

Ahmed Al Fateh 2000
Abdul Rahman Al Fadel 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| أحمد الفاتح [Ahmed Al Fateh] | 20 | Lürssen, Vegesack, West Germany | 5.2.1984 | in service (2020) | |||
| الجابري [Al Jaberi] | 21 | Lürssen, Vegesack, West Germany | 3.5.1984 | in service (2020) | |||
| عبدال رحمن الفاضل [Abdul Rahman Al Fadel] | 22 | Lürssen, Vegesack, West Germany | 10.9.1986 | in service (2020) | |||
| الطويله [Al Taweelah] | 23 | Lürssen, Vegesack, West Germany | 25.3.1989 | in service (2020) |
|
Displacement standard, t |
228 |
|
Displacement full, t |
259 |
|
Length, m |
42.3 pp 44.9 oa |
|
Breadth, m |
7.30 |
|
Draught, m |
2.30 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V538 TB92 diesels |
|
Power, h. p. |
14400 |
|
Max speed, kts |
40.5 |
|
Fuel, t |
diesel oil 45 |
| Endurance, nm(kts) | 1600(16) |
|
Armament |
2 x 2 MM40 Exocet SSM (4 MM40), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 1 - 12.7/90 |
|
Electronic equipment |
20, 21: Decca 1226, 9LV331 (9LV200 radar with e/o system), Sea Giraffe 50HC radars, Panda e/o system, RDL-2 ECM suite, Dagaie decoy RL 22, 23: Decca 1226, 9LV331 (9LV200 radar with e/o system), Sea Giraffe 50HC radars, Panda e/o system, Cutlass B-1, Cygnus ECM suites, Dagaie decoy RL |
|
Complement |
32 |
Project history: Lürssen TNC45 type, ordered in 1979 (first pair) and in 1985 (second pair). Can be fitted for minelaying.
Modernizations: None.
Naval service: No significant events.
Abdul Rahman Al Fadel 2009
