| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Yellow Elder | P03 | Fairey Marine, Cowes, UK | 1986 | 25.6.1986 | discarded 2018 | ||
| Port Nelson | P04 | Fairey Marine, Cowes, UK | 1986 | 9.1986 | discarded 2.2007 | ||
| Samana | P05 | Fairey Marine, Cowes, UK | 7.1986 | 20.11.1986 | discarded 2.2007 |
|
Displacement standard, t |
100 |
|
Displacement full, t |
180 |
|
Length, m |
29.0 pp 33.0 oa |
|
Breadth, m |
6.73 |
|
Draught, m |
2.10 |
|
No of shafts |
3 |
|
Machinery |
3 General Motors Detroit Diesel 16V149TB diesels |
|
Power, h. p. |
5400 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil 16 |
|
Endurance, nm(kts) |
1400(14) |
|
Armament |
1 x 1 - 20/90 Mk 20 Rh 202, 3 x 1 - 7.6/90 |
| Electronic equipment | Furuno FR-701 radar |
|
Complement |
21 |
Project history: Fairey Protector class.
Modernizations: None.
Naval service: No significant events.

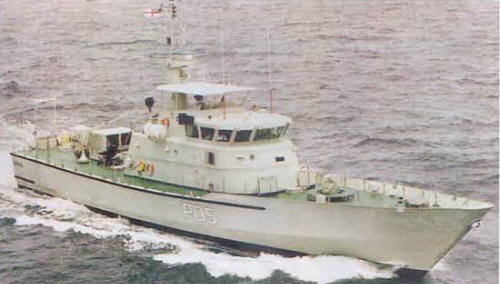

Samana 1996
