M325 1992
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| (ex-БТ-55 [BT-55], ex- Мангышлакский комсомолец [Mangyshlakskiy Komsomolets], ex- БТ-55 [BT-55]) | M324 | 130 | Avangard, Petrozavodsk, USSR | 17.11.1981 | 9.11.1982 | 29.6.1983 // 3.7.1992 | stricken ~2015 |
| (ex-БТ-16 [BT-16], ex- Астраханский комсомолец [Astrakhanskiy Komsomolets], ex- БТ-16 [BT-16]) | M325 | 122 | Avangard, Petrozavodsk, USSR | 19.6.1979 | 29.5.1980 | 31.12.1980 // 3.7.1992 | in service (2020) |
| (ex-БТ-103 [BT-103]) | M326 | Avangard, Petrozavodsk, USSR | 2/1981 // 3.7.1992 | in service (2020) |
|
Displacement standard, t |
427 |
|
Displacement full, t |
460 |
|
Length, m |
49.0 |
|
Breadth, m |
8.80 |
|
Draught, m |
2.45 |
|
No of shafts |
2 |
|
Machinery |
2 DRA-210B diesels |
|
Power, h. p. |
2000 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1500(10) |
|
Armament |
1 x 4 Strela-3 SAM (16 9M36), 1 x 2 - 30/71 AK-230M, 1 x 2 - 25/82 2M-3M, 6 mines, GKT-2 mechanical, AT-6 acoustic or PEMT-4 magnetic, AT-6 acoustic or ST-2 magnetic, AT-6 acoustic or TS-1 mechanical minesweeping gear or KIU-1 USV or 2x 200m mine clearance line charges |
|
Electronic equipment |
Mius, Don-2 or MR-212/201 Vaygach-U radars, MG-69 Lan', MG-79 Mezen', MG-7 Braslet sonars |
|
Complement |
45 |
Project history: Former Soviet project 1265 coastal minesweepers.
Modernizations: None.
Naval service: No significant events.

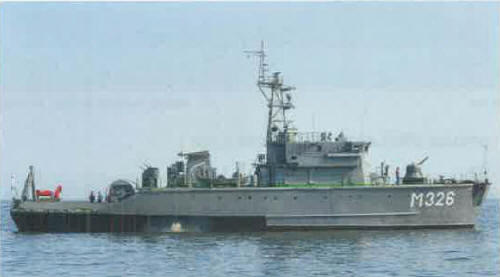

M326 2012
