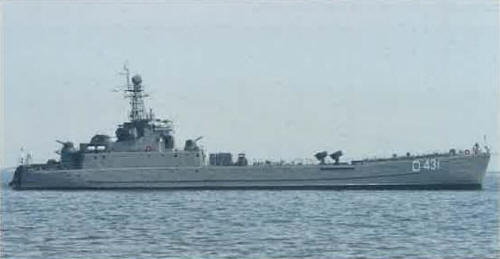

D431 1992
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Project 770MA | |||||||
| (ex-ÌÄÊ-36 [MDK-36], ex-ÑÄÊ-36 [SDK-36]) | D431 | 770MA/26 | Stocznia Północna, Gdańsk, Poland | 15.4.1965 | 12.1.1966 | 11.6.1966 // 3.7.1992 | in service (2020) |
| (ex-ÌÄÊ-37 [MDK-37], ex-ÑÄÊ-37 [SDK-37]) | D432 | 770MA/27 | Stocznia Północna, Gdańsk, Poland | 10.5.1965 | 5.2.1966 | 24.6.1966 // 3.7.1992 | in service (2020) |
| Project 770T | |||||||
| (ex-ÌÄÊ-68 [MDK-68], ex-ÑÄÊ-68 [SDK-68]) | D434 | 770T/4 | Stocznia Północna, Gdańsk, Poland | 1.2.1965 | 22.12.1965 | 31.5.1966 // 3.7.1992 | stricken 2016 |
|
Displacement standard, t |
pr. 770T: 704 pr. 770MA: 772 |
|
Displacement full, t |
pr. 770T: 751 pr. 770MA: 820 |
|
Length, m |
73.0 |
|
Breadth, m |
8.62 |
|
Draught, m |
pr. 770T: 1.85 pr. 770MA: 1.98 |
|
No of shafts |
2 |
|
Machinery |
2 40D diesels |
|
Power, h. p. |
4400 |
|
Max speed, kts |
18.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1800(16) |
|
Armament |
pr. 770T: 4 x 4 Strela-2M SAM (32 9M32M), 2 x 18 - 140 WM-18 RL pr. 770MA: 4 x 4 Strela-2M SAM (32 9M32M), 2 x 2 - 30/71 AK-230, 2 x 18 - 140 WM-18 RL |
|
Military load |
4 heavy or 5 medium tanks or 9 trucks |
|
Electronic equipment |
pr. 770T: Donets radar pr. 770MA: Donets, MR-104 Rys' radars |
|
Complement |
42 |
Project history: Former Soviet projects 770T and 770MA medium (later small) landing ships.
Modernizations: None.
Naval service: No significant events.
D431 2012
