Bodrog 1904
Temes 1917
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Temes | 902 | Schoenichen, Újpest | 1/1903 | 26.3.1904 | 11/1904 | to Yugoslavia 12.1918 (Дрина [Drina]) | |
| Bodrog | 903 | Schoenichen, Újpest | 2/1903 | 12.4.1904 | 8/1904 | to Yugoslavia 4.1920 (Сава [Sava]) |
| Data variant | as completed |
|
Displacement normal, t |
442 |
|
Displacement full, t |
486 |
|
Length, m |
57.7 oa 55.6 pp |
|
Breadth, m |
9.50 |
|
Draught, m |
1.20 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 Yarrow boilers |
|
Power, h. p. |
1400 |
|
Max speed, kts |
13 |
|
Fuel, t |
|
| Endurance, nm(kts) | 500(9.5) |
|
Armour, mm |
side: 40, deck: 25, CT: 75 |
|
Armament |
2 x 1 - 120/33 G. L/35 K.04, 1 x 1 - 120/8 Haub. L/10, 2 x 1 - 37/42 C.1900V, 3 x 1 - 8.80 |
|
Complement |
Bodrog: 86 Temes: 89 |
Project history: Development of the Körös class.
Ship protection: Machinery had 40mm vertical and 25mm horizontal protection.
Modernizations: 1900s: - 2 x 1 - 37/42; + 1 x 1 - 66/16 G. L/18
7/1917, Temes was recommissioned 7.1917 with data as given in the table.
| Data variant | Temes 7.1917 |
|
Displacement normal, t |
470 |
|
Displacement full, t |
520 |
|
Length, m |
60.3 |
|
Breadth, m |
9.50 |
|
Draught, m |
1.20 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 Yarrow boilers |
|
Power, h. p. |
1400 |
|
Max speed, kts |
13 |
|
Fuel, t |
|
| Endurance, nm(kts) | 500(9.5) |
|
Armour, mm |
side: 40, deck: 25, CT: 40 |
|
Armament |
2 x 1 - 120/33 G. L/35 K.04, 2 x 1 - 90/42 G. L/45 K.12 TAG/BAG, 2 x 1 - 47/40 L/44 (Skoda), 2 x 1 - 8.80 |
|
Complement |
89 |
Naval service: Temes was mined and sunk E of Sabac on the Sava River 23.10.1914. She was raised in June 1916 and repaired at Budapest, being recommissioned in July 1917. Bodrog 31.10.1918 ran ashore at Visnitsa, was interned and entered Yugoslavian Danube flotilla, Temes was interned some later. 15.4.1920 by results of division of Austro-Hungarian fleet she was officially transferred to Yugoslavia and renamed Sava. Drina (ex-Temes) was transferred to Romania.

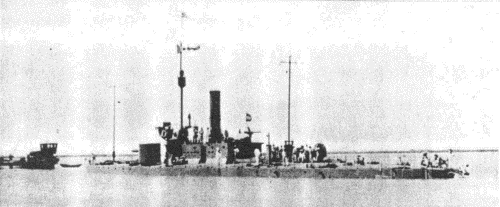

Temes 1914
Many thanks to Wolfgang Stöhr for additional information on this page.
