K-U-K MARINE - AUSTRO-HUNGARIAN NAVY (AUSTRIA-HUNGARY)

OTHER FIGHTING SHIPS

SAVA river monitors (1915)

Bosna 1918

Name No Yard No Builder Laid down Launched Comp Fate
Temes, 5.1917- Bosna   533 STT, Linz 1914 1915 7/1915 to Yugoslavia 5.1919 (Вардар [Vardar])
Sava   534 STT, Linz 1914 31.5.1915 9/1915 to Yugoslavia 1919 (Соча [Soča])



Displacement normal, t

580

Displacement full, t



Length, m

62.0

Breadth, m

10.3

Draught, m

1.30

No of shafts

2

Machinery

2 VTE, 2 Yarrow boilers

Power, h. p.

1750

Max speed, kts

13.5

Fuel, t

coal 60
Endurance, nm(kts) 700(10)

Armour, mm

side: 40, deck: 25, CT: 50

Armament

1 x 2 - 120/42 G. L/45, 2 x 1 - 120/8 Haub. L/10, 2 x 1 - 66/24 G. L/26 K.15 BAK, 2 x 1 - 47/40 SFK L/44 (Skoda), 7 x 1 - 8.80

Complement

91

Project history: Development of the Enns class.

Ship protection: Machinery had 40mm vertical and 25mm horizontal protection.

Modernizations: None.

Naval service: 31.12.1918 both were interned at Beograd and entered Yugoslavian Danube flotilla but later Soča was transferred to Romania as Bucovina. In January, 1919 Bosna was renamed Vardar. 15.4.1920 by results of division of Austro-Hungarian fleet ship was officially transferred to Yugoslavia.

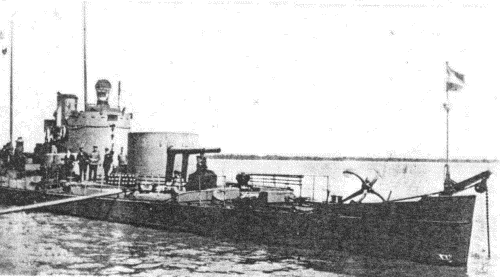

Bosna 1917

Many thanks to Wolfgang Stöhr for additional information on this page.
