K-U-K MARINE - AUSTRO-HUNGARIAN NAVY (AUSTRIA-HUNGARY)

OTHER FIGHTING SHIPS

I river patrol vessels (1915-1916)

Csuka 1917

Names

i, 1916- Fogas

k, 1916- Csuka

Builders

DDSG, Budapest: i, k

Commissioned

12/1915: i

3/1916: k

Losses

none

Transfers

Austria, 1920: Fogas (Fogas)

Hungary, 1920: Csuka (Siófok)

Discarding

none



Displacement normal, t

60

Displacement full, t



Length, m

36.0

Breadth, m

4.60

Draught, m

0.90

No of shafts

2

Machinery

2 VTE, 2 Yarrow boilers

Power, h. p.

800

Max speed, kts

12

Fuel, t


Endurance, nm(kts)

Armour, mm

belt: 5, deck: 4, turret: 5, CT: 5

Armament

1 x 1 - 66/27 G. L/30 K.09, 2 x 1 - 8.80

Complement

27

Project history: Built as Patrouillenbote (patrol boats), received names in 1916.

Ship protection: There was only splinter protection.

Modernizations: None.

Naval service: 15.4.1920, as result of partition of Austro-Hungarian Navy, Fogas was transferred to Austria. 6.10.1927 she was sold to Hungary and renamed Gödöllö. Csuka (ex-k) at partition of Austro-Hungarian Navy in 1920 headed out to Hungary, was named Siófok.

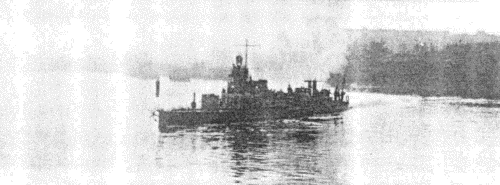

i 1915
