Viper 1896
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Viper, 1910- 17 | 1008 | Yarrow, Cubitt Town, UK | 1895 | 16.12.1895 | 10/1896 | to France 1920 |
|
Displacement normal, t |
124 |
|
Displacement full, t |
|
|
Length, m |
45.0 wl |
|
Breadth, m |
4.50 |
|
Draught, m |
2.30 |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 2 Yarrow boilers |
|
Power, h. p. |
1900 |
|
Max speed, kts |
25 |
|
Fuel, t |
coal 30 |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 47/30 SFK L/33 H, 3 x 1 - 450 TT |
|
Complement |
21 |
Project history: Yarrow-built TB.
Modernizations: None.
Naval service: No significant events.

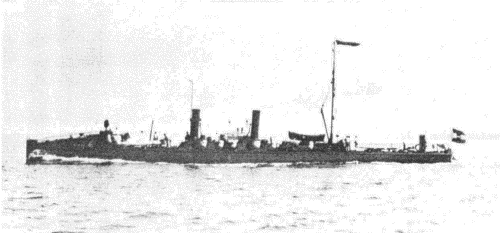

Viper 1902
Many thanks to Wolfgang Stöhr for additional information on this page.
