Elster 1890
|
Names |
Kibitz, 1910- 19 Kukuk, 1910- 20 Staar, 1910- 21 Krähe, 1910- 22 Rabe, 1910- 23 Elster, 1910- 24 Gaukler, 1910- 25 Flamingo, 1910- 26 Sekretär, 1910- 27 Weihe, 1910- 28 Marabu, 1910- 29 Harpie, 1910- 30 Bussard, 1910- 33 Condor, 1910- 34 Geier, 1910- 35 Uhu, 1910- 36 Würger, 1910- 37 Kranich, 1910- 38 Reiher, 1910- 39 Ibis, 1910- 40 |
|
Builders |
Marinearsenal Pola: Kibitz, Elster, Bussard, Condor, Geier, Uhu, Würger, Kranich, Reiher, Ibis Schichau, Elbing, Germany: Kukuk, Staar, Krähe, Rabe STT, San Rocco: Gaukler, Flamingo, Sekretär, Weihe, Marabu, Harpie |
|
Completed |
1886: Bussard, Condor, Geier, Uhu 1887: Würger, Kranich, Reiher, Ibis 1888: Rabe, Elster 1889: Kukuk, Staar, Krähe, Flamingo, Sekretär, Weihe, Marabu 1890: Gaukler, Harpie 1891: Kibitz |
|
Losses |
26 (23.8.1914) |
|
Transfers |
Yugoslavia, 1920: 19 (D4), 21 (D1), 36 (D2), 38 (D3) Italy, 1920: 20, 22 - 25, 27, 29, 30, 33 - 35, 37, 39, 40 |
|
Discarding |
1911: 28 |
|
Displacement normal, t |
78 |
|
Displacement full, t |
88 |
|
Length, m |
39.9 wl |
|
Breadth, m |
4.80 |
|
Draught, m |
1.90 |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 1 locomotive boiler |
|
Power, h. p. |
1000 |
|
Max speed, kts |
19 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
1200(10) |
|
Armament |
2 x 1 - 37/20 SFK L/23 H, 1 - 356 TT (bow), 1 x 1 - 356 TT |
|
Complement |
16 |
Project history: Standard Schichau boats.
Modernizations: 1900-1910, all: were reboilered with 2 oil-burning Yarrow boilers with two funnels.
1914, 23, 27, 29, 30, 33-38, 40; 1916, 20-22, 24, 25; 1918, 19: + mechanical minesweeping gear
1914, 19-22, 24-26, 39: - 1 x 1 - 356 TT
Naval service: In 1920 Nos 22, 24, 25 and 29 became Italian customs patrol boats.

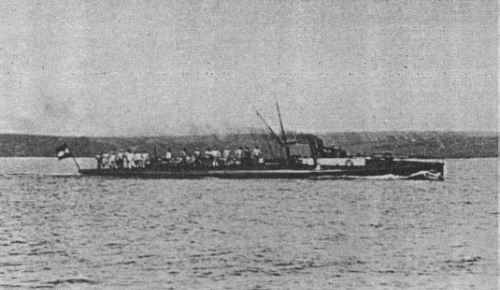

Rabe after reboilering

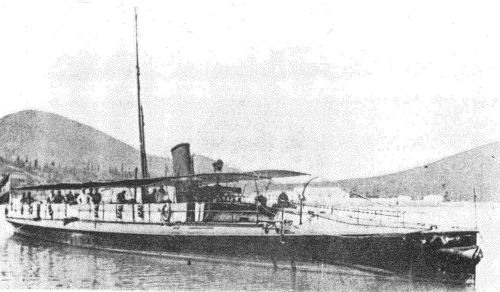

Marabu
