Adler 1886
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Adler, 1910- 41 | 694 | Yarrow, Poplar, UK | 1884 | 12/1884 | 1886 | stricken 1911 | |
| Falke, 1910- 42 | 693 | Yarrow, Poplar, UK | 1884 | 12/1884 | 1886 | stricken 1911 |
|
Displacement normal, t |
95 |
|
Displacement full, t |
100 |
|
Length, m |
41.2 |
|
Breadth, m |
4.20 |
|
Draught, m |
1.70 |
|
No of shafts |
1 |
|
Machinery |
1 VC, 2 locomotive boilers |
|
Power, h. p. |
1300 |
|
Max speed, kts |
22 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 37/20 SFK L/23 H, 2 - 356 TT (bow) |
|
Complement |
16 |
Project history: Original design became prototype for British TB80.
Modernizations: None.
Naval service: No significant events.

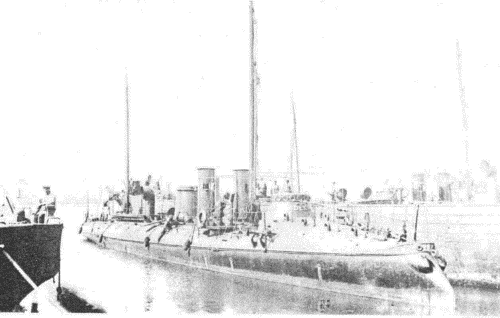

Adler
Many thanks to Wolfgang Stöhr for additional information on this page.
