Kronprinz Erzherzog Rudolf 1889
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Kronprinz Erzherzog Rudolf | Marinearsenal Pola | 25.1.1884 | 6.7.1887 | 9/1889 | local defence ship 1906, to Yugoslavia 11.1918 (Комбор [Kombor]) |
|
Displacement normal, t |
6829 |
|
Displacement full, t |
|
|
Length, m |
97.6 oa 90.3 pp |
|
Breadth, m |
19.3 |
|
Draught, m |
7.39 |
|
No of shafts |
2 |
|
Machinery |
2 4-cyl VC, 10 cylindrical boilers |
|
Power, h. p. |
6000 |
|
Max speed, kts |
15.5 |
|
Fuel, t |
coal 580 |
| Endurance, nm(kts) | 2600(10) |
| Armour, mm | Harvey; belt: 305, turrets: 250, deck: 70, CT: 75 |
|
Armament |
3 x 1 - 305/32 G. L/35 C.80, 6 x 1 - 120/31 G. L/35 C.87, 2 x 1 - 66/16 G. L/18, 5 x 1 - 47/40 SFK L/44 H, 2 x 1 - 47/30 SFK L/33 H, 2 x 1 - 37/20 SFK L/23, 4- 400 TT ( 1 bow, 1 beam, 1 stern) |
|
Complement |
447 |
Project history: These barbette ships (Kronprinzessin Erzherzogin Stefanie and Kronprinz Erzherzog Rudolf) were designed by the new Austrian Director of Naval Construction, Josef Kuchinka. The hull was constructed from transverse and longitudinal frames, and was highly subdivided, although the armour enclosed only the vital parts of the ship. Externally, the ships were characterized by main battery guns mounted side by side facing forward (plus one firing stern on Kronprinz Erzherzog Rudolf). The origin of this arrangement seems to have, been the French custom of placing guns in open barbettes, so that their arc of fire was greater - as in the old citadel arrangements. However, open barbettes were no longer effective after 1890, due to the introduction of rapid loading heavy guns so that these ships quickly became obsolete. The remarkable number of 37 additional auxiliary steam engines were installed.
Ship protection: The 305mm belt (on 254mm teak) protected the hull between fwd edge of fwd barbettes and centre of aft barbette (50% of ship length) extending from 1.5m under wl to 2.7m above and was closed by 279mm bulkheads. Steel 25mm flat main deck was connected with lower edge of the belt by curved 50mm slopes. Barbettes over the belt had 254mm protection. CT had 305mm sides.
Modernizations: None.
Naval service: Kronprinz Erzherzog Rudolf was ceded to Yugoslavia in November 1918 and renamed Kumbor. She was sold for scrap in 1922.

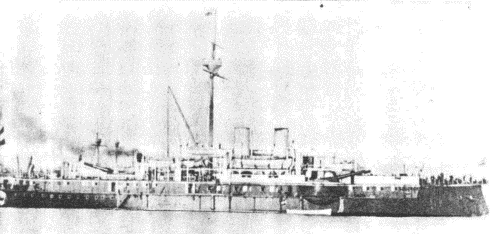

Kronprinz Erzherzog Rudolf 1890
