OXLEY patrol submarines (1967-1978)

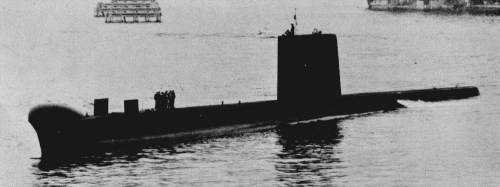

Oxley 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Oxley | S57, 1969- 57 | Scotts, Greenock, UK | 2.7.1964 | 24.9.1965 | 27.3.1967 | decommissioned 2.1992, sold | |
| Otway | S59, 1969- 59 | Scotts, Greenock, UK | 29.6.1965 | 29.11.1966 | 23.4.1968 | decommissioned 2.1994, sold 1995 | |
| Ovens | 70 | Scotts, Greenock, UK | 17.6.1966 | 4.12.1967 | 18.4.1969 | decommissioned 12.1995, preserved 1998 | |
| Onslow | 60 | Scotts, Greenock, UK | 4.12.1967 | 3.12.1968 | 22.12.1969 | decommissioned 3.1999, preserved 1999 | |
| Orion | 61 | Scott Lithgow, Greenock, UK | 6.10.1972 | 16.9.1974 | 15.6.1977 | decommissioned 1996, sold 2003 | |
| Otama | 62 | Scott Lithgow, Greenock, UK | 25.5.1973 | 3.12.1975 | 27.4.1978 | decommissioned 12.2000, preserved 2001 |
|
Displacement standard, t |
1610 |
|
Displacement normal, t |
2030 / 2410 |
|
Length, m |
73.4 pp 88.5 oa |
|
Breadth, m |
8.10 |
|
Draught, m |
5.60 |
|
No of shafts |
2 |
|
Machinery |
2 16-cyl ASR 1 diesels / 2 English Electric electric motors |
|
Power, h. p. |
3680 / 6000 |
|
Max speed, kts |
12 / 17 |
|
Fuel, t |
diesel oil 258 |
|
Endurance, nm(kts) |
9000(12) / |
|
Armament |
8 - 533 TT (6 fwd, 2 aft, 30) |
|
Electronic equipment |
type 1006 radar, type 187C, type 197, type 2007, BQQ-4 Micropuffs sonars |
|
Complement |
64 |
|
Diving depth operational, m |
230 |
Project history: Virtually identical to the British Oberon design, built 1964-78.
Modernizations: 1980, Oxley; 1981, Otway; 1982, Ovens; 1983, Orion; 1984, Onslow; 1985, Otama: - 2 - 533 TT (aft), type 187C, type 197 sonars; armament consisted of 6 - 533 TT (20 UGM-84 Sub-Harpoon SSM and Mk 48 torpedoes); + CSU3-41 sonar
Naval service: No significant events.
Oxley 1980
