AUSTRALIAN NAVY - AUSTRALIA

ESCORTS

YARRA frigates (1961)

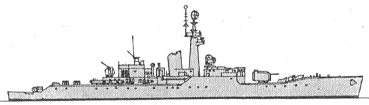

Yarra 1961

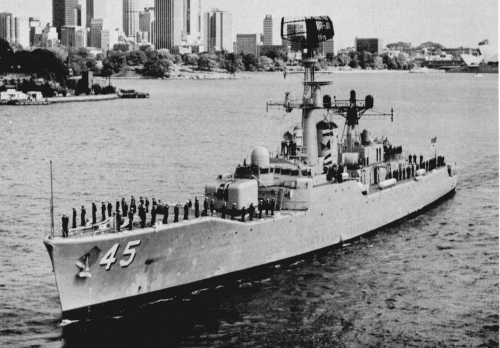

Yarra 1970

Parramatta 1990



Displacement standard, t	2150
Displacement full, t	2560
Length, m	109.7 pp 112.7 oa
Breadth, m	12.5
Draught, m	3.90 max
No of shafts	2
Machinery	2 sets Yarrow geared steam turbines, 2 Babcock & Wilcox boilers
Power, h. p.	30000
Max speed, kts	29
Fuel, t	oil 370
Endurance, nm(kts)	4500(12)
Armament	1 x 2 - 120/45 Mk 6, 1 x 2 - 40/60 STAAG Mk 2, 2 x 3 - 305 Limbo Mk 10 ASWRL
Electronic equipment	type 275, type 262, type 293, type 277, type 978, LW-02 radars, type 162, type 170, type 177M, type 185 sonars
Complement	152 - 231

Project history: In August 1950 plans for six Type 12 frigates were announced, but subsequently the number was cut to four; No 5 and No 6 were later reordered to a modified design. They incorporated all the improvements of the RN Rothesay class, and in addition had MRS 3 fire control and Dutch Signaal LW-02 air warning radar. The second pair had the forecastle deck extended aft to the stern, providing additional accommodation. Stuart was the first to be fitted with the Ikara ASW system, which replaced one of the Limbo Mk 10 mortars aft, and Derwent was the first RAN ship to receive the Seacat GWS22 missile system in lieu of the twin 40mm Bofors.

Modernizations: 1964?, Parramatta; 1967, Yarra: - 1 x 2 - 40/60, 1 x 3 - 305 Limbo ASWRL, type 262 radar; + 1 x 4 Seacat GWS22 SAM (24 Seacat), 1 x 1 Ikara ASuM (30 Ikara), type 904 radar

1975, Yarra: - type 170, type 177M sonars; + Mulloka sonar

1977, Yarra: - 1 x 3 - 305 Limbo ASWRL, type 293, type 904 radars; + helicopter deck, SPS-55, WM-22 radars

1981, Parramatta: - 1 x 3 - 305 Limbo ASWRL, type 293, type 904 radars, type 170, type 177M sonars; + 2 x 3 - 324 TT, SPS-55, WM-22 radars, Mulloka sonar

Naval service: No significant events.

Yarra 1980
