STUART frigates (1963-1964)

Parramatta 1980

Derwent 1990



Displacement standard, t	2150
Displacement full, t	2560
Length, m	109.7 pp 112.7 oa
Breadth, m	12.5
Draught, m	3.90 max
No of shafts	2
Machinery	2 sets ASR geared steam turbines, 2 Babcock & Wilcox boilers
Power, h. p.	30000
Max speed, kts	29
Fuel, t	oil 370
Endurance, nm(kts)	4500(12)
Armament	Stuart: 1 x 1 Ikara ASuM (30 Ikara), 1 x 2 - 120/45 Mk 6, 1 x 2 - 40/60 STAAG Mk 2, 1 x 3 - 305 Limbo Mk 10 ASW mortars Derwent: 1 x 4 Seacat GWS22 SAM (24 Seacat), 1 x 2 - 120/45 Mk 6, 2 x 3 - 305 Limbo Mk 10 ASW mortars
Electronic equipment	Stuart: type 975, type 974, type 293, type 977, type 978, type 903, type 994, LW-02 radars, type 162, type 170, type 177M, type 185 sonars Derwent: type 975, type 974, type 293, type 977, type 978, type 904, type 994, LW-02 radars, type 162, type 170, type 177M, type 185 sonars
Complement	200 - 235

Project history: In August 1950 plans for six Type 12 frigates were announced, but subsequently the number was cut to four; No 5 and No 6 were later reordered to a modified design. They incorporated all the improvements of the RN Rothesay class, and in addition had MRS 3 fire control and Dutch Signaal LW-02 air warning radar. The second pair had the forecastle deck extended aft to the stern, providing additional accommodation. Stuart was the first to be fitted with the Ikara ASW system, which replaced one of the Limbo Mk 10 mortars aft, and Derwent was the first RAN ship to receive the Seacat GWS22 missile system in lieu of the twin 40mm Bofors.

Modernizations: 1965, Derwent: - 1 x 3 - 305 Limbo ASWRL; + 1 x 1 Ikara ASuM (30 Ikara)

1965, Stuart: - 1 x 2 - 40/60, type 903 radar; + 1 x 4 Seacat GWS22 SAM (24 Seacat), type 904 radar

1983, Stuart; 1985, Derwent: - 1 x 3 - 305 Limbo ASWRL, type 293, type 904 radars, type 170, type 177M sonars; + 2 x 3 - 324 TT, SPS-55, WM-22 radars, Mulloka sonar

Naval service: No significant events.

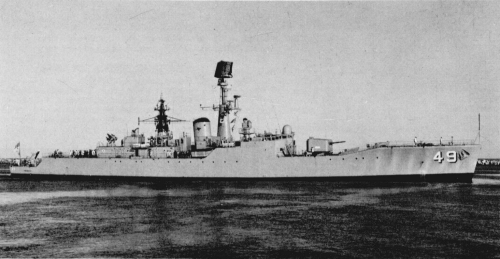

Derwent 1980
