VOYAGER destroyers (1957-1959, 1955/1964)

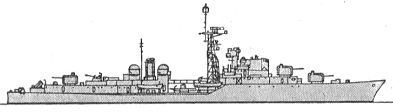

Voyager 1963
Duchess 1964

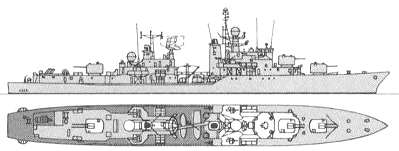

Vampire 1970
Vampire 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Voyager | D04 | 188 | Cockatoo I DYd | 10.10.1949 | 1.5.1952 | 12.2.1957 | collision 10.2.1964 |
| Vendetta | D08, 1969- 08 | Williamstown DYd | 4.7.1949 | 3.5.1954 | 26.11.1958 | decommissioned 10.1979, sold 1.1987 | |
| Vampire | D11, 1969- 11 | 189 | Cockatoo I DYd | 1.7.1952 | 27.10.1956 | 23.6.1959 | museum ship 6.1986 |
| Waterhen | Williamstown DYd | 12/1952 | --- | --- | cancelled 1954 | ||
| Duchess | D154, 1969- 154 | Thornycroft, Woolston, UK | 7/1948 | 9.4.1951 | 10/1952 // 5.1964 | TS 8.1974, decommissioned 10.1977, sold 5.1980 |
Displacement
standard, t 2800 Displacement
full, t 3600 Length, m 111.6
pp 118.9
oa Breadth, m 13.1 Draught, m 4.14
deep load No of shafts 2 Machinery
D04, 08, 11: 2 sets English Electric geared steam turbines, 2
Foster Wheeler boilers
D154: 2 sets Pametrada geared steam turbines,
2
Foster Wheeler boilers Power, h. p. 54000 Max speed, kts 34.75 Fuel, t oil 590
Armament D04: 3 x 2 -
120/45 Mk 6, 2 x 2 - 40/60 STAAG Mk 2, 1 x 2 - 40/60 Mk 5, 1 x 5 - 533 TT, 1
x 3 - 305 Squid Mk 4 ASWRL
D08, 11: 3 x 2 - 120/45 Mk 6, 2 x 2 - 40/60 Mk 5, 2 x 1 -
40/60 Mk 7, 1 x 5 - 533 TT, 1 x 3 - 305 Limbo Mk 10 ASWRL
D154: 3 x 2 - 120/45 Mk 6, 1 x 2 - 40/60 Mk 5, 2 x 1 - 40/60 Mk 7, 1 x 3 -
305 Squid Mk 4 ASWRL Electronic equipment D04, 08, 11:
type 275, 2x type 262, type 293 radars, type 170, type 174/177 sonars D154: type 262,
type 277, type 291, type 293,
type 903
radars, type
170, type 174/177 sonars Complement 320
Endurance, nm(kts)
4400(20)
Project history: Four modified Daring class destroyers were ordered in December 1946, but work did not start until 1949, with material imported from Great Britain. In general the original layout was followed, but the after bank of TT was suppressed and 'X' turret was moved forward to allow a Limbo mortar to be mounted on the centreline. Waterhen was cancelled in 1954. As completed, Voyager was very similar to the British Daring, but Vampire and Vendetta were given two CRBF director on the centreline forward and aft of the funnel and two twin 40mm Mk 5 Bofors mountings sided.
Modernizations: 1971, Vampire; 1974, Vendetta: - type 275, type 293 radars; + LW-02, 2x WM-22, SGR-301A radars, type 162, type 185 sonars
1974, Duchess: - 1 x 2 - 120/45 (aft), 1 x 3 - 305 Squid ASWRL; + large deckhouse for classrooms
Naval service: Voyager was sunk on 10 February 1964 in Tasman Sea in collision with aircraft carrier Melbourne and HMS Duchess was transferred from the RN on loan; she was bought outright in 1972 and paid off in 1977. Duchess and Vendetta were put on the disposal list in 1979, but in 1980 Vampire joined a new training squadron, she was paid off in August 1985. Vendetta was not stricken until January 1987.

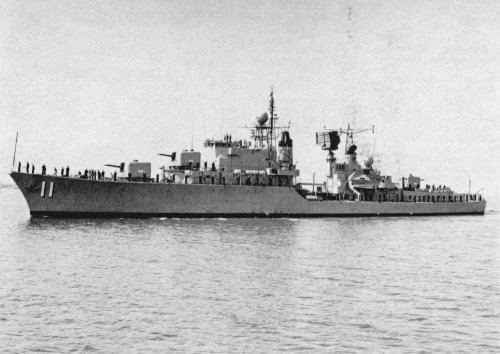

Vampire 1978
Many thanks to Borys Estrin for additional information on this page.
