HOBART guided missile destroyers (2017-)

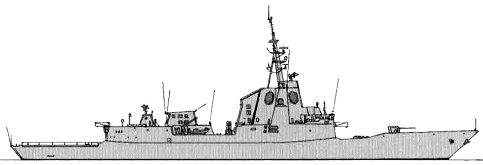

Hobart 2017
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Hobart | 39 | ASC, Adelaide | 6.9.2012 | 23.5.2015 | 23.9.2017 | in service (2019) | |
| Brisbane | 41 | ASC, Adelaide | 3.2.2014 | 15.12.2016 | 27.10.2018 | in service (2019) | |
| Sydney | 42 | ASC, Adelaide | 19.11.2015 | 19.5.2018 | 2019 | building (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
6250 |
|
Length, m |
133.2 pp 146.7 oa |
|
Breadth, m |
18.6 |
|
Draught, m |
7.20 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 General Electric LM-2500 gas turbines / 2 Caterpillar Bravo 16V diesels |
|
Power, h. p. |
47400 / 12240 |
|
Max speed, kts |
28 |
|
Fuel, t |
gas turbine oil / diesel oil |
| Endurance, nm(kts) | 5600(18) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84), 1 x 48 Standard SM-2MR Blcok III SAM / ESSM SAM (32 RIM-66M + 16 RIM-162), 1 x 1 - 127/62 Mk 45 mod. 4, 2 x 1 - 25/75 Typhoon-G Mk 25, 1 x 6 - 20/76 Mk 15 Phalanx Block 2B, 2 x 2 - 324 Mk 32 mod. 9 TT (MU90), 2 helicopters (S-70B-2 Seahawk) |
|
Electronic equipment |
SPY-1D(v), SPQ-9B, 3x SPG-62, type 1100 radars, Vampir NG, Mk 20 EOS e/o systems, type 2150, towed sonars, CS-3701, ES-3701-02S, MBS-567A ECM suites, 4x SKWS Mk 137, 4x Nulka decoy RL, SLQ-25A Nixie torpedo decoy, COMBATTS-21 (Aegis Mk 7-1) CCS |
|
Complement |
205 + 25 passengers |
Project history: The class provides air defense against missiles and aircraft for friendly ships, land forces, and coastal infrastructure. Intended to replace the Charles F. Adams-class guided-missile destroyers and to ensure air-defense capabilities through the first half of the 21st century. In 2007 the Australian government announced that the Navantia-designed F-100 had been selected as the basis for the Hobart-class Air Warfare Destroyers. ASC Shipbuilder Pty Ltd. was selected as the shipyard for building the ships, and Raytheon, Australia was selected as the combat systems engineer. The AN/SPY-1D(v) provides aircraft and missile defense coverage at ranges in excess of 150km. At least 1 helicopter may be carried. Improvements over the F-100 class include increased diesel power and efficiency providing increased range; bow thrusters for increased littoral maneuverability; funnel top enhancements to improve "air wake", and increased bunk size to improve habitability. A Cooperative Engagement Capability (CEC) is fitted and the Mk 45 127mm gun is capable of firing Extended Range Munitions. Undersea capabilities are improved over the F-100 program with the addition of a torpedo defense system, improved ASW decoys for torpedo defense, expanded underwater communications capabilities, and integration of the lightweight MU 90 torpedo. Improved antiship-missile defense capabilities and upgrades to the surface-to-surface missile system are also called for to improve target selectivity in congested littoral and coastal waters. There are plans to arm ships with Standard SM-3 and Tomahawk missiles.
4th ship, 45 Melbourne, was cancelled 15.3.2009 for financial reasons.
Modernizations: None.
Naval service: No significant events.
